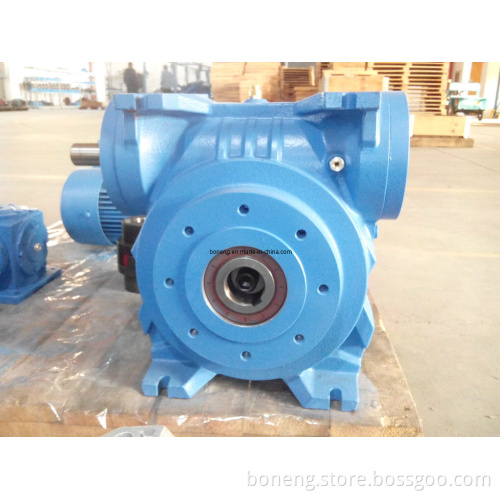

Worm Gear Box, Worm Geared Motor

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzou, China
Payment Type:	T/T

Product Description

Technical data:
1. Power: 0.12-7.5 KW
2. Ratio: 6-80
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 49-9100N.m
5. Transmission stage: 2 stage, 3 stage
6. Mounting position: Vertical, horizontal
7. Brand name: BONENG

Commeicial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 20-25 days
4. Payment terms: FOB, CIF, DDP
5. Payment method: T/T, 30% in advance, 70% before delivery
6. Shipping port: Shanghai

Material:
Housing: Aluminium or HT250 cast iron.
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 18 months

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions
