Product Description

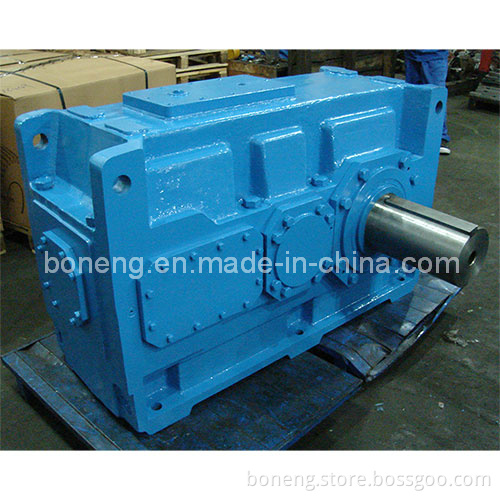

Industrial Helical Gearbox

Technical information:
1. Power: 4-1758KW
2. Ratio: 14-250
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 11.6-200KN.m
5. Transmission stage: 3 stage, 4 stage
6. Mounting position: Vertical, horizontal

Commercial Information:
7. Brand name: BONENG
8. MOQ: 1 set
9. Packing method: Polywood
10. Delivery lead time: 20-25 days
11. Payment terms: FOB, CIF, DDP
12. Payment method: T/T, 30% in advance, 70% before delivery
13. Shipping port: Shanghai

Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 18 months

Application:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.
