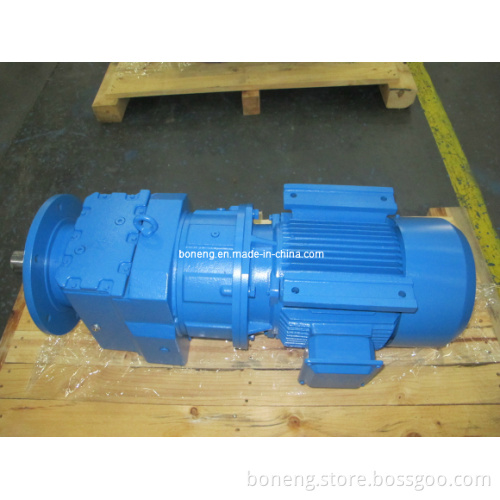

Helical Gear Box, Helical Geared Motor

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou China
Payment Type:	L/C, T/T

Product Description

Technical data:
1. Power: 0.12-160kw
2. Ratio: 1.6-264
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 130-18000N.m
5. Transmission stage: 1 stage, 2 stage, 3 stage.
6. Mounting position: Foot mounted,flange mounted,pug mill
7. Brand name: BONENG

Commeicial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 20-25 days
4. Payment terms: FOB, CIF, DDP
5. Payment method: T/T, 30% in advance, 70% before delivery
6. Shipping port: Shanghai

Material:
Housing: Aluminium or HT250 cast iron.
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 18 months

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions
Helical Gear Box, Helical Geared Motor
