Product Description

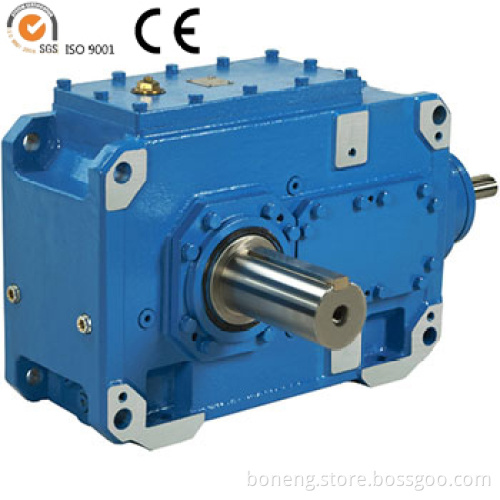

Bevel-Helical Right Angle Shafts Gear Box

Technical Data:
1. Power: 4-5000kw
2. Ratio: 1.25-450
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 2300-900000N.m
5. Transmission stage: 1 stage, 2 stage, 3 stage, 4 stage
6. Mounting position: Vertical, horizontal

Commercial information:
7. Brand name: BONENG
8. MOQ: 1 set
9. Packing method: Polywood
10. Delivery lead time: 20-25 days
11. Payment terms: FOB, CIF, DDP
12. Payment method: T/T, 30% in advance, 70% before delivery
13. Shipping port: Shanghai

Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo
Warranty: 18 months

Application Industries:
Modular, high standardization, components of few specifications and models.
Wide power, torque, speed ratio covering range.
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.
