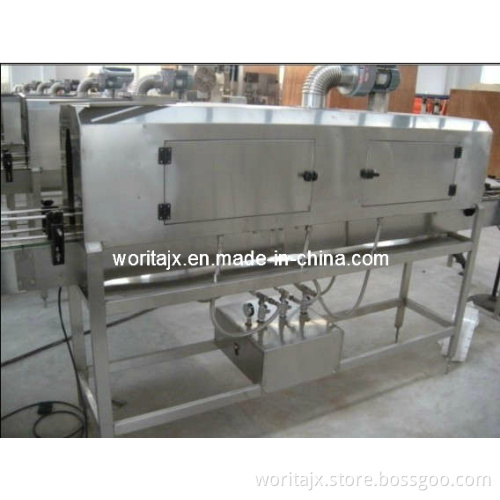

Semi-Auto Steam Shrinking Tunnel for Bottle Label

Semi-auto Label Shrinking TunnelPower: 3-phase 380VAC50/60Hz0.75KWFacility Size: 1600*400*1600MMPressure: 0.4-0.7MPAMax Packing dimension: 1780*560*1850Made out of SUS304 stainless steel-Equipment with steam control valve for steam bolw wastage-Remained steam control valve tor steam blow wastage-Steam Precision is adjustableShrinking effect perfect and don't hurt the labelMain technical parameters: Size: 1200*400*1800mmPressiure: 0.4-0.7MpaPower: 0.75kwMain character: The machine is made of SUS304 stainless steel with compact structure, easily operation which can prevent water and rust. It is controlled by the separated steam valve, which can adjust the steam pressure and flow capacity, do no harm to the label and shrink with a good look out. Steam GeneratorTechnical Parameters: Input Power Supp: 3-phase 380VInput Power: 18KWSteam Pressure: 0.25-0.4MpaVapor Generation Value: 24Kg/h; 48Kg/hExternal Dimension: 600*550*1200Weight: 96KgCharacteristics: The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with high working efficiency.
