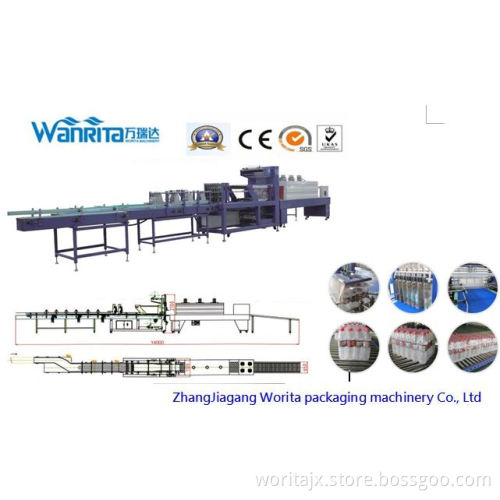

Medium Speed Wrapping Equipment (WD-350A)

Medium speed Wrapping equipmentI. Technical parameter: Facility model: Wd-350A typeFacility overall size: L12000*w1100*h2100mmFacility overall size: Main equipment: L12000*w1100*h2100mmShrinkage machine: 4200*1100*1700mmWrappage max size: L2400*w650*h450mmShrinkage film material: PEShrinkage film thickenss: 0.03-0.15mmThermo shrinkage tunnel max temperature: 160 - 260° Adjust at willMax output per minute: 16-20 bagFacility power: 25kwActual power: 20kw/hPressure requirement: 380V/50-60HzFacility weight: 2500Air pressure: 0.6-0.8mpaWorking noise: ≤ 65dBImport bottle convey belt width: 541mmFan: 1.1kw 3set 380V, 60W 6set 380VII. Facility basic collocation: Omron: PLC controlling systemWeinview: Touch screenTaiwan airtac pneumatic component 1setTaiwan telta transducer 2setStainless steel wing heating tube 12PCSChina-USA cooperation teflon convey belt. Shanghai hemei motor and zhenjiang taili worm derailleur. South Korea autonics photoelectrical switch, approach witchThermo sealing knife aluminum casting heating board, even temperature, long usage life, our company special production. Whole III product instructionFrequency converter speed adjust\two segment convey device. Bottle pushing, thermo sealing and cutting whole movement adopt to pneumatic fracture. Proximity switch control film lengthTouch screen, PLC system greatly increase facility movement reliability. Three-wind recycle fan machine, ensure shrinkage tunnel inside even temperature. Super big wind-volume cooling system, ensure quickly get into shape. Anti-high temperature teflon convey belt, convey steadily, high-strength anti-abrasion. Frequency limitless speed adjust convey belt frame. Convey belt height can make according client requirement, adjust range: ± 100mmWing stainless steel heating system, enduranceMeet with product instant stop requirement product-bearing rack device ensure production line consistency. IV. Technical requirement: 1. Package type: (1)350/500/550/600ml big bag: 4*6, 4*5; Small bag\3*4, 3*5 four type of package. (2)1L/1.5L/2L/2.5L big bag: 3*3, 3*4; Small bag 2*2, 2*3 four type f package2. Regarding can, we suggest adopt to package with tray, pack steadily. 3. Package speed: 16-20bag/min4. Meet with pre-treatment filling speed of filling machine. (1) 350/500/550/600mlBig bag: 4*6, 4*5, (24000-29000b/h); Small bag: 3*5, 3*4, (15000-18000b/h). (2)1L/1.5L/2L big bag: 3*4, 3*3(10000-14000b/h)\ small bag: 2*3, 2*2(5000-7000b/h). 5. Package material: PE thermo shrinkage film width(200-600mm, thickness(0.03-0.12mm)V. Solution1. According production line, auto arrange, and combine our company wd-350A automatic sealing and cutting mature fracture, as the machine fracture. 2. The production line can match with any company filling device. For it stability, the production line main component all adopt to import, joint venture famous brand. 3. If pre-treatment filling machine output is comparatively high, can divide two-way, auto seal and cut at the same time, to meet with output requirement, among wd-350A fracture has original creation, it is the high-efficiency, highest economical collocate at the same time. 4. PE film adopt to flake, upper and down roll, auto seal and cut to roll type and up to shrinkage efficiency. VI. The function of the specification (three parts)1. Wd-350A auto linear convey fracture, joint filling machine convey belt, control via frequency converter, speed adjust freely, can auto divide and sort bottles. 2. Wd-350A automatic film wrap fracture, can complete wrap auto film covering and sealing, cutting function. 3. Wd-350A auto thermo shrinkage cooling fracture, can complete auto contraction and cooling function after film covering.
