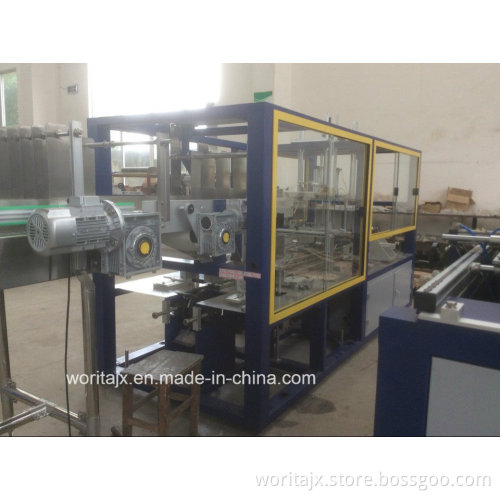

Carton Packaging Machine for Beverage Bottles (WD-XB25)

25 Bags Min Wrap Around Case PackerFacility basic summary and requirement: The machine adopt to servo location, PLC controlling, auto operation, main drive adopt to import motor drive, multi degree rotation via chain, chain wheel speed regulator ect. It auto degree is high, reliable controlling, easy to adjust, intelligentize manipulation ect advantage, can widely used for beverage, beer, chemistry, food, medicine ect industry, can do all kind of tin and bottle second time package, can match with auto filling production line. Main parameter: Product capacity: 25carton per minuteRating power: 10KWUsed power supply: Three phase, 380V, 50HzControlling power supply: 24V DVCompressor air: 1500L per minute, 0.6-0.8MpaHot melting glue solidify time: 1.5-2SMachine weight: 3500kgOverall size: L6285*W2582*H2115MMBottle entry conveyor size: L3000*W620*1200MMPackage product overall size: Length 350-450, Width 230-330mm, Hieght: 85-320mm; Package bottle diameter: D55-108MMCardboard requirement: Accord with international GB/T6544-2008Carton package procedure flow: Bottle are separated to multi channel at conveyor, and then group by bottle separate fracture evenly. Bottle are grouped, then drop to cardboard via bottle drop fracture. At drop fracture with bottle and cardboard fall procedure, via one group of form block board, then card board fold to carton form. Via main drive with carton move forward, at the same time, via glue spray fracture to finish carton top glue spray, again the cam fracture via top ledge fold, at the same top carton fold to finish top sticking. Carton move forwarder, again via glue spray fracture to finish carton side glue spray, and via side pressure and carton press fracture to finish carton finally form and sticking, and via main drive let carton move forwarderRelated collocation descriptionIf not 440V voltage, it can supply an traction transformerAccording to country regulation, electricity cabinet protection degree IP54, Button protection degree is IP65. Insulation anti-fire cable accord with national criterionTotal button: TE companyPanel button: D22MMTE companyMechanism limit switch: TE companyApproach switch: STCK companyPhotoelectric switch: STCK companyRelay connector accord with DIN50-022-35 criterionQuick support head accord with: DIN50-022-35 CriterionController: Japan MitsubishiAsynchronous motor: Our country super good brandServo motor: SchneiderGear motor: Our country good brandServo controller: SchneiderFrequency converter: SchneiderHot glue machine: Swiss Le Bai De (can choose Nordson)Cylinder; AIRTAC (Can choose Festo)Electronic valve: Airtac company or other broadOther electricity drive device as IDC529 criterion, not low than IP54Shaft: TR companyChain: Stainless steel, carbonated steel, high module engineering plasticCardboard transportation structure
