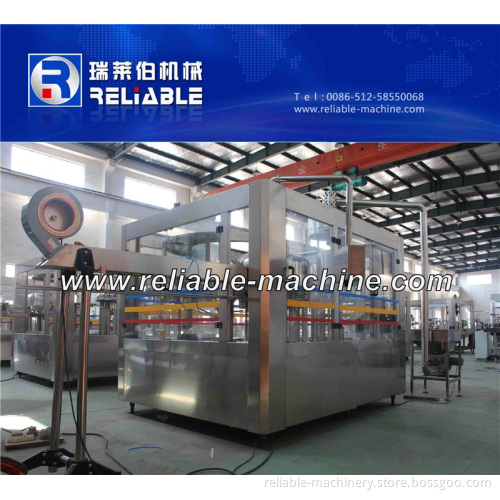

Automatic Pet Bottle Mineral Water Filling Equipment (CGF)

Automatic PET Bottle Mineral Water Filling Equipment

1. Product: Liquid drinking water
2. Capacity: 2000-22000b/h
3. PLC control, touch screen
4. SUS304

Automatic PET Bottle Mineral Water Filling Equipment

Mineral Water Filling Equipment----Brief Introduction
The mineral water filling equipoment includes water treatment machines, filling system, labeling and packing system. Among all the machines, the key machine is the bottled drinking water washing filling capping machine. It contains washing, filling and capping with complete automation. It is suitable for filling all kinds of beverage drinks into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable.

Automatic PET Bottle Mineral Water Filling Equipment

Mineral Water Filling Equipment- Washing Part
The bottle is blew into the bottle shifting wheel, when the flushing clamp reaches the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180° Into an upright position, through second bottle pusher into the filling position.

Mineral Water Filling Equipment----Filling Part
The filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle. When the liquid level of the bottle reaches the trachea of the filling valve, the filling will stop.

Mineral Water Filling Equipment---- Capping Part
The capping part consists of screw heads, capping transmission part, a sorting part and an under cover tube parts. The bottle which has finished filling will enter the capping position via the driving wheel. The photoelectric detection of the detecting signal detects the bottle, send a message to the valve cover, the cylinder cap will open, the caps will be blew into the cover plate by compressed air. The screw head which has magnetic torque will come down when it gets in a straight line with the bottle cap, the rotary cap ring gear seizes the cap and move forward, the cap lid the bottle and screw. When the torque out numbered the adjusted magnetic, the capping head will automatically slip, thus protect the cap from being damaged by the rotary cap ring gear. Bottles that have finished capping will be transported by the bottle pusher to the conveyor belt.

Automatic PET Bottle Mineral Water Filling Equipment

Mineral Water Equipment-----Working Flow
-Raw mineral water
-raw water tank
-raw water booster pump
-mechanical filter
-activated carbon filter
-precise filter
-UF Componentsmineral
-water tank(Ozone device)
-Mineral water Bottle filling machine(lamp-checking+bottle dryer)
-Code printer
-Bottle labeling machine
-Bottle packing machine
-Bottle blow molding machine

Automatic PET Bottle Mineral Water Filling Equipment
