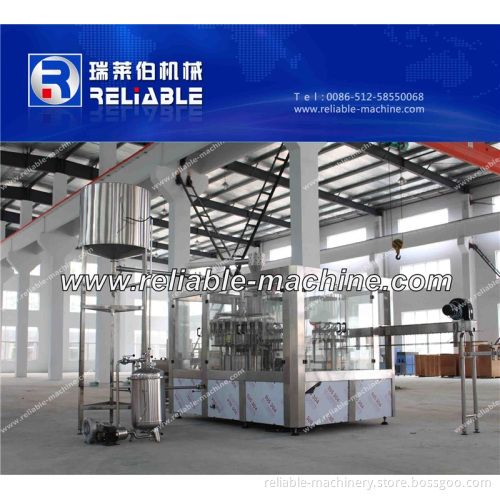

New Design Automatic Fruit Juice Processing Line/Production Equipment

New Design Automatic Fruit Juice Processing Line/Production Equipment1. Rinser, filler, capper 3 in 1 monoblock2. Reliable service3. Advanced technologyNew Design Automatic Fruit Juice Processing Line/Production Equipment1. The New Desigh Automatic Fruit Juice Processing Line/Production Equipment range from 2000bph to 18000bph, can apply to juice, tea, sport drinks, function drinks, etc. 2. Rinser/Filler/Capper Monobloc Size of bottle: 500ml (250ml-20000ml) not returnable square or round PET bottle. Closure type: 28~38mm standard plastic screw caps Method of bottle transferring: By neck Products: Tea/juice/sports drink/milk beverage. Composition: -Base -Rinser -Filler -Capper(1). Rinser-Rotative rinsing turret one treatment, fixed nozzles, with grippers. -The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip. -After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again. (2). Filler-The starwheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design. -Product bowl is to reduce the loss of heat. -If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump. (3). Capper-Rotative capping turrent, suitable to the application of screw plastic caps on PET bottles -The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. -The heads are raised and lowered by the action of a follower that is riding on a shaped cam. New Design Automatic Fruit Juice Processing Line/Production EquipmentOur Services: 1. Your inquiry related to our product & price will be replied within 24 hours. 2. Well-trained & experienced staff are to answer all your inquiries in English and Chinese. 3. Working time: 8: 30am ~6: 00pm, Monday to Friday(UTC+8). 4. OEM & ODM projects are both available. 5. Your business relationship with us will be confidential to any third party. 6. Good after-sale service offered, please get back to us if you got any questions.
