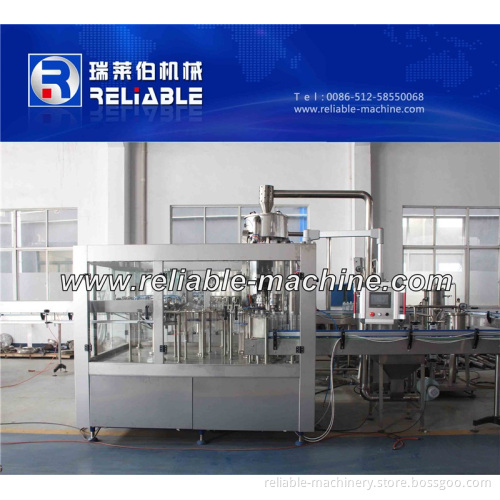

Carbonated Bottle Drink Making Machine / Processing Line

Carbonated Bottle Drink Making Machine / Processing Line1. Washing filling capping in one2. Soda, cola, coke3. Gas water filling machine4. With ISOCarbonated Bottle Drink Making Machine / Processing LineCharacteristics: 1. This DCGF Wash-filling-capping 3-in-1unit2. Beverage Machinery is used to produce Gas beverage (CSD)3. Beverage Machinery can finish all the process such as press bottle, filling and sealing4. It can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiencyA) The Washing PartThe bottle is blew into the bottle shifting wheel, when the flushing clamp reaches the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180° Into an upright position, through second bottle pusher into the filling position. B) The Filling PartThe filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle. When the liquid level of the bottle reaches the trachea of the filling valve, the filling will stop. C)The Capping PartThe capping part consists of screw heads, capping transmission part, a sorting part and an under cover tube parts. The bottle which has finished filling will enter the capping position via the driving wheel. The photoelectric detection of the detecting signal detects the bottle, send a message to the valve cover, the cylinder cap will open, the caps will be blew into the cover plate by compressed air. The screw head which has magnetic torque will come down when it gets in a straight line with the bottle cap, the rotary cap ring gear seizes the cap and move forward, the cap lid the bottle and screw. When the torque out numbered the adjusted magnetic, the capping head will automatically slip, thus protect the cap from being damaged by the rotary cap ring gear. Bottles that have finished capping will be transported by the bottle pusher to the conveyor belt. Follow Chart: PET bottle production line: PET preform(Injection moulding machine) --Bottle blowing machineFilling line: Water treatment system— Beverage preparing system---Washing, filling, capping machine--Light checker--Sleeve labeling machine--Code sprayer--PE film Packing machineCarbonated Bottle Drink Making Machine / Processing LineWhat service Reliable Machinery Co., Ltd can offer you? Your inquiry related to our product & price will be replied within 24hoursWell-trained & experienced staff are to answer all your inquiries in English and ChineseWorking time: 8: 30am ~6: 00pm, Monday to Friday(UTC+8). OEM & ODM projects are both availableYour business relationship with us will be confidential to any third party. Good after-sale service offered, please get back to us if you got any questions. We are specialized in beverage machine. We offer varies stand-alone devices(such as Processing System, Water Treatment System, Blow Moulding System, Filling System, UVT System, Secondary Packing System). Our company has years of design experience and numbers of proprietary technologies. Most of elements employ foreign advanced products. Long warranty time and good service will make you satisfied. Regular processing reports will tell you the production process roundly. We are Reliable-Machine Co., Ltd. We can be your reliable supplier.
