Automatic Plastic Bottled Carbonated Drinking Filling Machine/ Line 3 in 1 (CGFD)

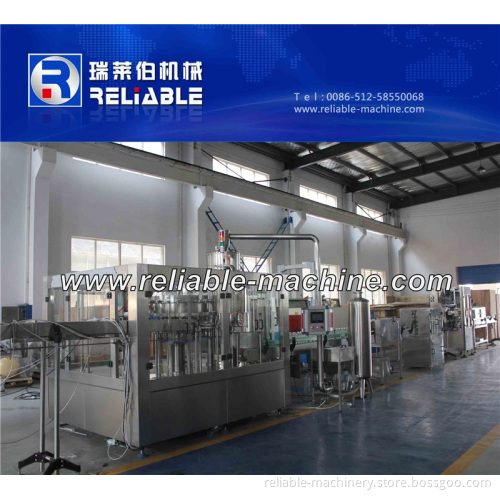

Automatic Plastic Bottled Carbonated Drinking Filling Machine/Line 3 in 1

1. Production capacity: 2000-22000bph
2. Suitable bottle type: 300-2500ml
3. Full Automatic
4. CE Certificate

Automatic Plastic Bottled Carbonated Drinking Filling Machine/Line 3 in 1

Carbonated Filling Machine-----Brief Introduction
The Carbonated Filling Machine including functions of rinsing filling sealing
The 3 In 1 Filling Machine of the full water prodcution line works automatic and controlled by PLC
The whole water line main material adopts good quality SS304 and 316
The main component parts adopts famous brand such as Mitsubishi, Siemens
Gravity filling vale with high flow makes filling faster and without liquid loss...
Thedrinking water produciton line adopts direct connection technology between air conveyor and in-feeding star-wheel to substitute in-feeding screw and conveyor to ease the process of changing different bottle size

Automatic Plastic Bottled Carbonated Drinking Filling Machine/Line 3 in 1

Carbonated Filling Machine-- Washing Part


The bottle is blew into the bottle shifting wheel, when the flushing clamp reaches the bottle neck, the jaw will clamp the bottleneck, under the guidance of the rail, the clamp will turn the bottle 180° Into an upright position, through second bottle pusher into the filling position.

Carbonated Filling Machine----Filling Part


The filling part is manly composed of a filling valve and filling transmission parts. The washed bottle reaches the filling position via the bottle shifting wheel. In the mean time, the bottle clamping plate of the filling machine will clamp the bottle and move up to seal the bottle, filling valve will open, send the liquid into the bottle. When the liquid level of the bottle reaches the trachea of the filling valve, the filling will stop.

Carbonated Filling Machine---- Capping Part

The capping part consists of screw heads, capping transmission part, a sorting part and an under cover tube parts. The bottle which has finished filling will enter the capping position via the driving wheel. The photoelectric detection of the detecting signal detects the bottle, send a message to the valve cover, the cylinder cap will open, the caps will be blew into the cover plate by compressed air. The screw head which has magnetic torque will come down when it gets in a straight line with the bottle cap, the rotary cap ring gear seizes the cap and move forward, the cap lid the bottle and screw. When the torque out numbered the adjusted magnetic, the capping head will automatically slip, thus protect the cap from being damaged by the rotary cap ring gear. Bottles that have finished capping will be transported by the bottle pusher to the conveyor belt.

Automatic Plastic Bottled Carbonated Drinking Filling Machine/Line 3 in 1

Carbonated Filling Machine-----Working Flow
-raw water tank
-raw water booster pump
-mechanical filter
-activated carbon filter
-precise filter
-RO System/Hollow Filter System
-Onzone sterilizer/UV sterilizer
-water tank
-Drinking water filling machine(lamp-checking+bottle dryer)
-Code printer
-Bottle labeling machine
-Bottle packing machine
-Bottle blow molding machine

Automatic Plastic Bottled Carbonated Drinking Filling Machine/Line 3 in 1

Carbonated Filling Machine----Reliable Machinery Service:
Your inquiry related to our product & price will be replied within 24hours
Well-trained & experienced staff are to answer all your inquiries in English and Chinese
Working time: 8: 30am ~6: 00pm, Monday to Friday(UTC+8).
OEM & ODM projects are both available
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back to us if you got any questions.

Welcome to Zhangjiagang Reliable Machinery Co., Ltd
