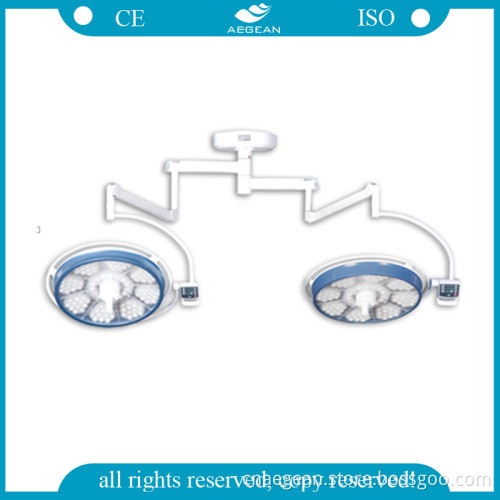

AG-Lt002 Operation Lamp

AG-LT001 series is fully enclosed streamlined dual-lamp body structure, fully meeting the high standards of disinfection and laminar flow in today's operating room. Using CAD / CAM technology to create overall reflection optical system, Adopting color temperature compensation technology to enhance color reproduction, more suitable for brain surgery, thoracic surgery and other complex large lighting operations. The type is movable with stand. It is mounted type and has monitor, the product can be based on user's demand matching video surveillance system for image3), SpecificationsCharacteristicsContent Reflector diameter 700mm Reflector diameter 500mmCenter Light intensity 120klx~140klx 80klx~120klxSpot diameter(d10) ≥ 180mm ≥ 160mmColumn depth ≥ 700mm ≥ 600mmColor temperature 4500± 500KIncreasing Temperature ≤ 10Color rendering Index (CRI) ≥ 92Switch between main and assistant bulb AutomaticIllumination adjustment: 8-level sequentiallyBulb watt 150WTotal radiated energy Ee where the illuminance reaches max level: ≤ 500w/m2Mechanical characteristicsSpring arm around fixed holder ≥ 360° Bracket around spring arm ≥ 360° Rotation of horizontal bracket clockwise ≥ 140° , anti-clockwise ≥ 140° Lamp head around horizontal bracket clockwise ≥ 100° , anti-clockwise≥ 100° Up and down of balancing arm: Up≥ 40° Down ≥ 40° Camera system specification1. Mounted in 2 million pixel camera system, optical zoom ≥ 22 times2. Camera has versatility, removable interchangeable; Auto-focus, according to rotate through the controller RC Lens and video zoom in and out3. With automatic and manual focus feature: Auto white balance function provides crisp, clear and stable images4. Video format: PLA. Horizontal resolution≥ 460 line5. Light sensitivity≤ 3Lux6. The camera's resolution750× 5807. Equipped with 1 set of dedicated medical grade LCD display system; ≥ 19-Inch dedicated LCD monitor, 1280× 1024 resolution, it can display four different formats of images
