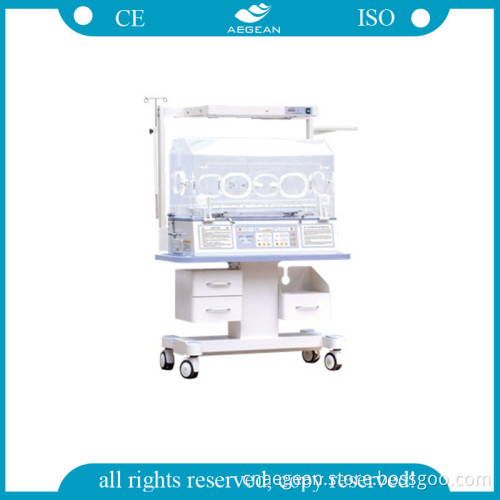

AG-Iir003 Medical High Strength Warmer Incubator

Specification

Function features

1.Microprocessor based servo controlled temperature system

2.Air temperature,skin temperature,humidity,timer and heat power separately displayed by LED

3.Alarms functions : Power failure; over temperature; temperature deviation; temperature sensor failure;fan failure;

4.Silence/reset button for alarms

5.Integral timer to record therapy time

6.Humidity is adjustable continuously

7.>37°C temperature setting

8.A keypad lock  prevent inadvertent changes the setting

9.Trough for pulling and pushing ,which is convenient to add water and wash

10.Fan with low noise and long life-span

11.Temperature deviation and over temperature could be amended in front panel directly

12.A second thermal cut-off function for more safety

13.Skin temperature sensor failure protect function avoid over temperature

14.The infant bed inclination angle is adjustable

15.six operating windows,two sides operating windows can be swiveled

16.Heater is electrically cut-out if air temperature inside incubator exceed 40°C

17.big storage cabinet

Standard configuration

Main body(including the transparent hood,control system,infant bed,water trough),

skin temperature sensor,I.V.pole, mattress, height adjustable ;cabinet, castors

Optional parts:

Phototherapy up side unit;

phototherapy from up and down sides;

RS232(485) connector;

Tray/pole

Technical data:

1.Power supply : AC 110/220V  60/50Hz

2.Power input :  ≤420VA

Operating conditions:

a.Environment temperature: 20°C~30°C

b.Environment relative humidity: 30%~75%RH

c.Environment air velocity of flow: <0.3m/s

3.Air Temperature control range: 25°C~38°C

4.Skin temperature control range:32°C~38.5°C

5.Skin temperature sensor accuracy: +/-0.3°C

6.Temperature fluctuation: +0.5°C

7.Uniformity of mattress temperature: ≤0.8°C

8.Warm-up time: ≤45min

9.Internal noise level: ≤55dB

10.Humidity display range:10%-95%RH

11.Humidity accuracy: ≤10%RH

12.Infant bed tilt angle : +10º

13.Mattress size: 67cm(L)×54cm(W)

14.Trough capacity: 1200ml

15.Air filter:0.5um

Transport and storage

Environment Temp:-10°C--+70°C

Environment Relative Humidity: ≤80% RH

Atmospheric Pressure: 500~1060Hpa
