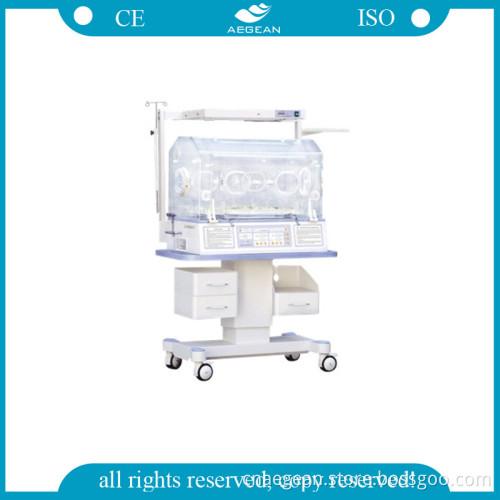

AG-Iir002b Luxurious ISO&CE Baby Warmer

 AG-IIR002B Luxurious Movable radiant warmer for newborn

Specification


1.Microprocessor based servo controlled temperature system
2.Air temperature,skin temperature,humidity,timer and heat power separately displayed by LED
3.Alarms functions : Power failure; over temperature; temperature deviation; temperature sensor failure;fan failure;
4.Silence/reset button for alarms
5.Integral timer to record therapy time
6.Humidity is adjustable continuously
7.>37°C temperature setting
8.A keypad lock  prevent inadvertent changes the setting
9.Trough for pulling and pushing ,which is convenient to add water and wash
10.Fan with low noise and long life-span
11.Temperature deviation and over temperature could be amended in front panel directly
12.A second thermal cut-off function for more safety
13.Skin temperature sensor failure protect function avoid over temperature
14.The infant bed inclination angle is adjustable
15.six operating windows,two sides operating windows can be swiveled
16.Heater is electrically cut-out if air temperature inside incubator exceed 40°C
17.cabinet with three drawers, silence  castors
18.Large size and double wall hood
19.Electric height adjustable suit for operation
20.Phototheray unit

Standard configuration
Main body(including the transparent hood,control system,infant bed,water trough),skin temperature sensor,I.V.pole,tray ,mattress, height adjustable ;cabinet, castors

Optional parts:
Phototherapy up side unit;
phototherapy from up and down sides;
RS232(485) connector;
Tray/pole

Technical data:
1.Power supply : AC 110/220V  60/50Hz
2.Power input :  ≤420VA
Operating conditions:
1.Environment temperature: 20°C~30°C
2.Environment relative humidity: 30%~75%RH
3.Environment air velocity of flow: <0.3m/s
4.Air Temperature control range: 25°C~38°C
5.Skin temperature control range:32°C~38.5°C
6.Skin temperature sensor accuracy: +/-0.3°C
7.Temperature fluctuation: +0.5°C
8.Uniformity of mattress temperature: ≤0.8°C
9.Warm-up time: ≤45min
10.Internal noise level: ≤55dB
11.Humidity display range:10%-95%RH
12.Humidity accuracy: ≤10%RH
13.Height adjustable range:0-20CM
14.Infant bed tilt angle : +10º
15.Mattress size: 67cm(L)×54cm(W)
16.Trough capacity: 1200ml
17.Air filter:0.5um

Transport and storage
Environment Temp:-10°C--+70°C
Environment Relative Humidity: ≤80% RH
Atmospheric Pressure: 500~1060Hpa

Quick Quotation? Directly Calling Mr. Warmth +86 15551195809 !!!
