Irdeto Cloaked CAS HD DVB-S2 Satellite Receiver

Get Latest Price

Payment Type:: L/C, T/T, D/P

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu, China
Payment Type:	L/C, T/T, D/P

Product Description

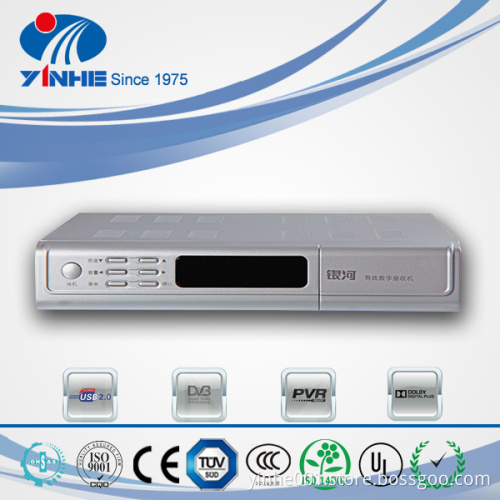

HD DVB-S2 Satellite Receiver with Irdeto cloaked CAS

Specification
HD DVB-S2 set top box compliant with MPEG2 and MPEG4 H.264
Compatible with HDTV channels and equipped with HDMI connector
USB2.0 port with PVR function and external HDD support
MultiMedia playback MKV/AVI/MP4/TS/FLV/MP3/JPEG
EPG & Teletext & Subtitles
Multi Language OSD menu

Technical Specifications
Core System
Processor Frequency:     475MHz
Memory:                                     16MB Flash
128MB RAM DDR-2/DDR-3
OS:                                      Famos
Protocols:                          Fully MPEG 4/DVB-S2 Compliant System Diseqc 1.0 & Diseqc 1.2 Compliant Multi standard
STB upgrade:                   Through USB Disk or RS232

Video Decoding
Resolution:                        Up to 1920x1080P 50Hz
Supports HD MPEG2 (up to MP@HL1080i)
Supports HD MPEG4 SP/ASP(720p/1080i)
Fully conpliant with ITU-T H.264,ISO/IEC 14496-10
RealVideo 8/9/10, up to 720@30P(Licensee Only)
DivX3/4/5/6 (Licensee Only)
HD JPEG with unlimited resolution (40M-pixel tested)

Audio Decoding
Audio Codec:                    MPEG-4 AAC5.1/AAC+Level2,
MPEG-1/2 layer I, II and III, WMA, Digital5.1, Digital+, DTS (Licensee Only)

Connectivity
Broadcast tuners:            1 satellite DVB-S2
Video:                                HDMI v1.3
RCA out (CVBS, Audio L,R) or TV Scart
Audio:                                Digital audio optical out(optional)
USB:                                   1x USB 2.0 host device
Ethernet:                            RJ45 (10M/100M automatic adaption)
DC INPUT              12V 2A
Power
Main power:                      90-250V
Power consumption:       MAX 24W
In StandBy mode:           <0.5W

Dimensions
W x H x D (mm): 215*160*40
Weight (g): 1.2KG
Packaging dimension (mm): 275*240*55
Weight including packaging (kg): 1.5KG

Proposed Accessories
Remote Control Unit
RCA Connect Cable
2 * 7# Batteries(optional)
HDMI cable length 1.5m (optional)
