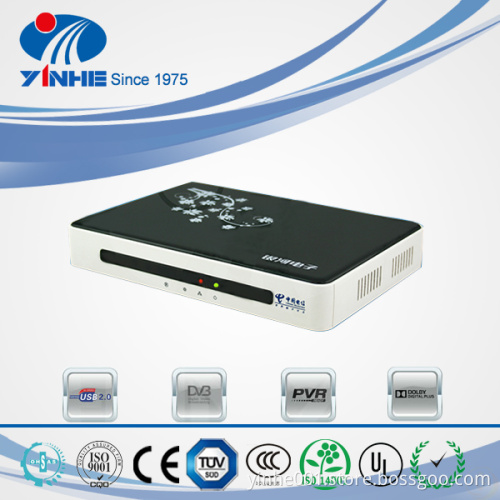

Full HD 1080P Android IPTV Set Top Box

Functions

EMBEDDED CPU ARM cortex A9 ,2500DMIPS

INTEGRATE MPEG-1/MPEG-2/MPEG-4/H.264, AVS HARDWARE DECORDER

COMPLIANT IPTV STB STANDARD V2.0 & V2.0+

SUPPORT CVBS, S-VIDEO, YPbPr, HDMI OUTPUT

SUPPORT L/R AUDIO ,SPDIF OUTPUT

SUPPORT 2x USB 2.0 HOST, EASY CONNECT WITH FLASH DISK,

HARD DISK ,WIF NET CARD ect.

MUTI CODE IR REMOTE CONTROL

COMPATIBLE IEEE802.3, IEEE802.3u, IEEE802.3x STANDARD

10/100 Mbit/s ADAPTIVE RJ45

SUPPORT DOUBLE ETHERNET INTERFACE (WLAN & LAN)

*32bits True Color On Screen Dispial Menu

 Auto update software through usb or ethernet port RJ45

 Stock listing receiver and anlysis

 Suppport VOD, Internet Game, Web Browser

SWICH POWER SUPPLY, LOW POWER CONSUMPION STANDBY

Technical Specifications

*Internet

1. Internet Standard                 IEEE802.3, IEEE802.3u, IEEE802.3x

2. IP protocol                             IPv4.IPv6

3. Transmission protocol       ISMA,TS over UDP ,TS OVER RTP

4. Internet protocol                   TCP/IP, HTTP, POP3, DNS, FTP, NTP, SSL, PPPoE, SNMP, SMPT ect

*Video Decording

VIDEO  DECORDING

 H.264 MP, HP@Level 4.1

MPEG 1

MPEG 2 MP@ HL

MPEG 4(H.236 BASELINE)

DIVX4-6

AVS @6.0

H.263

REALVIDEO8/9/10

VC-1AP

FULL HD JPEG

*Audio Decording

digital, digital plus

MPEG L1/L2

Ac3

downmix

*Rear Panel

2 x USB port 2.0 HOST

1 x RJ45(10/100M adaptive)

1 HDMI Connector, 1 Optical Fiber Jack, 1 S-Video

*6RCA  JACK(1xVideo , 2xAudio L/R, 3xComponent Video YUV)

IR

POER switch

*Connector

USB 2.0HOST                                       480Mbit/s, 12Mbit/s, 1.5Mbit/s

10/100 Mbit/s ADAPTIVE RJ45          1xRJ45

Video output                                          1xRCA, S-video,  YPbPr, HDMI

Audio Left/Right                                    2xRCA

 Digital  Audio(SPDIF)                         1xOptical

*Power Supply

Input voltage                   12V-2A

Power Consumption     Max.15W

*Remote Control

Battery                              2x1.5v  AAA

Operating Distance UP To 8m

*General  Data

Operating Temperature        0°c to +45°c

Operating Humidity                20%-80%

*Proposed  Accessories

1. External power supply

2. Remote Control Unit

3. 2*7# Batteries

4. HDMI cable length 1,5m(optional)
