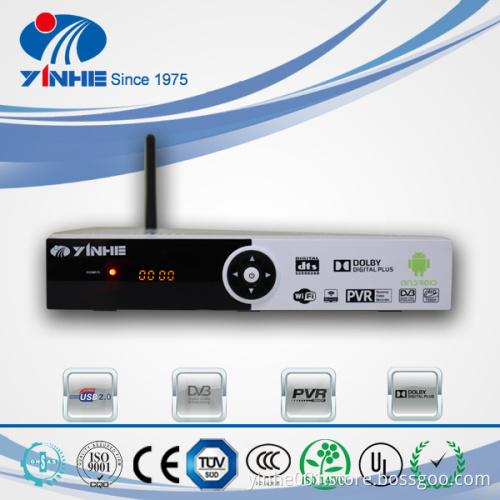

Dual Core Android + DVB-S2 Combo Digital Set Top Box

Entertainment Solution

AndroidTV enables viewers to access different contents,games and services from the Internet,Satellite or Terrestrial broadcast.SuchTV provides a whole new entertainment experience at home.With User-friendly designed UI,viewers will be able to access their desired contents at ease.

CPU: Dual Core 1.5G(Max)

ROM:4GNANDFlash

RAM:1GDDR3

SupportHDMI1.3

CVBS/R/L/SPDIF

3 USB2.0ports

SD-Card

SupportWiFi(IEEE802.11n)

ConnectorsINPUT USB1/USB2/USB3 1 Siamese USB terminal

SD card Micro SD

RJ45 1 RJ45 terminal(horizontal)

DVB-S2 DVB-S2(F-Type)

AC-DC Adapter 12V/1A

OUTPUT WIFI IEEE 802.11b/g/n

HDMI 1 HDMI 1.4 terminal(horizontal)

CVBS 1 RCA terminal(yellow)

Audio 2 RCA terminals(white, red)

Digital Audio 1 Optical S/PDIF

TUNER Frequency Range 950MHz ~ 2150MHz

Input Signal Level -65dBm ~ -25dBm



Video decoding Multiple stream audio decodingAudio post-processing effects
