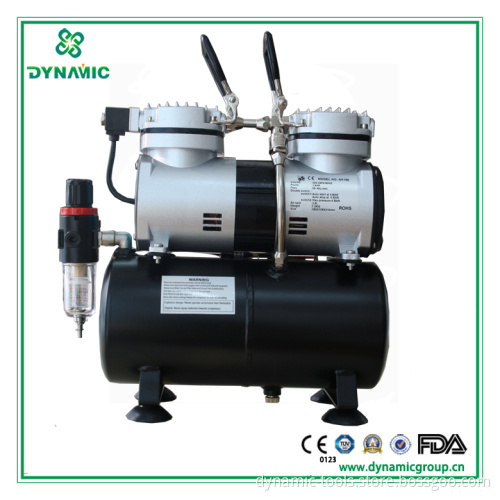

Shanghai Dynair Silent Oil Free Small Air Compressor (TC196)
- Payment Type:
- L/C, T/T, Paypal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu China |
|---|---|
| Payment Type: | L/C, T/T, Paypal |
Product Description
Product Description
Shanghai Dynair Silent Oil Free Small Air Compressor (TC196)
Mini air compressor
Model: TC-196
Air output per min. /liters30~35L/minAir output per min. /liters30~35L/min
Double switch: Switch 1: Auto stop, start at 3BAR, stop at 4BAR
Switch 2: Max pressure at 6 BAR. Safety valve: Release the air pressure automatically when the pressure over 6 BAR in the air tank.
Air tank: 3.5L
Pressure adjust range: 0.2~6 BAR
Fitting: Manometer; Pressure regulator; Air filter
Start-up pressure/OFF pressure: 0.55/0.8 Mpa
Connections: With connection 1/8'' BSP
Weight: 7.2KG
Dimension: 320X135X350MM
Work environment temperature: +5~+40 ºC
Work environment humidity: ≤ 80% RH
Work environment atmospheric pressure: 90~106 KPa
Continuous operating time: ≤ 4h
Double switch: Switch 1: Auto stop, start at 3BAR, stop at 4BAR
Switch 2: Max pressure at 6 BAR. Safety valve: Release the air pressure automatically when the pressure over 6 BAR in the air tank.
Air tank: 3.5L
Pressure adjust range: 0.2~6 BAR
Fitting: Manometer; Pressure regulator; Air filter
Start-up pressure/OFF pressure: 0.55/0.8 Mpa
Connections: With connection 1/8'' BSP
Weight: 7.2KG
Dimension: 320X135X350MM
Work environment temperature: +5~+40 ºC
Work environment humidity: ≤ 80% RH
Work environment atmospheric pressure: 90~106 KPa
Continuous operating time: ≤ 4h
Features:
Twin Cylinder Piston Compressor
Powerful and high air flow, low noise.
Thermally protected.
Auto release pressure and restart function.
Constant pressure and Zero pulsation.
Double switch:
Switch 1: Auto stop at 4BAR
Switch 2: Max pressure at 6 BAR.
Certificate: CE, GS, ETL, cETL, RoHS
Product Detail:
Voltage: 100-240V
Power: 250W [1/3HP]
Air output per min. /liters30~35L/min
Double switch: Switch 1: Auto stop, start at 3BAR, stop at 4BAR
Switch 2: Max pressure at 6 BAR. Safety valve: Release the air pressure automatically
when the pressure over 6 BAR in the air tank.
Air tank: 3.5L
Pressure adjust range: 0.2~6 BAR
Fitting: Manometer; Pressure regulator; Air filter
Start-up pressure/OFF pressure: 0.55/0.8 Mpa
Connections: With connection 1/8'' BSP
Weight: 7.2KG
Dimension: 320X135X350MM
Work environment temperature: +5~+40 ºC
Work environment humidity: ≤ 80% RH
Work environment atmospheric pressure: 90~106 KPa
Continuous operating time: ≤ 4h
Voltage: 100-240V
Power: 250W [1/3HP]
Air output per min. /liters30~35L/min
Double switch: Switch 1: Auto stop, start at 3BAR, stop at 4BAR
Switch 2: Max pressure at 6 BAR. Safety valve: Release the air pressure automatically
when the pressure over 6 BAR in the air tank.
Air tank: 3.5L
Pressure adjust range: 0.2~6 BAR
Fitting: Manometer; Pressure regulator; Air filter
Start-up pressure/OFF pressure: 0.55/0.8 Mpa
Connections: With connection 1/8'' BSP
Weight: 7.2KG
Dimension: 320X135X350MM
Work environment temperature: +5~+40 ºC
Work environment humidity: ≤ 80% RH
Work environment atmospheric pressure: 90~106 KPa
Continuous operating time: ≤ 4h
Characteristics:
1. Oil free: Do not need any lubricated oil, and harmless to the human body.
2. Super silent: Noise level lower than 56dB(a) to reduce noise pollution.
3. Multi-phase filteration: Advanced multi-phase filtration to ensure extremely clean air, and lengthen service life.
4. Safety using: Air compressor motors equipped with thermal prevention device to avoid overheating and protect motors.
5. Clean tank: All air receiver tanks have internal epoxy coating applied to avoid corrosion.
6. Automatic adjustment: High quality pressure switch used to control the power of air compressor automatically by adjustment of pressure level.
7. Pressure adjustment: Working pressure could be adjusted to meet the demand of different supporting equipments.
8. High durability: Serviceable time exceeds 15, 000 hours.
9. Simple operation: Using directly when connecting with power.
10. Easy maintanance: No need any lubricated oil.
11. Warranty: 2 years.
Production Process:
1. Oil free: Do not need any lubricated oil, and harmless to the human body.
2. Super silent: Noise level lower than 56dB(a) to reduce noise pollution.
3. Multi-phase filteration: Advanced multi-phase filtration to ensure extremely clean air, and lengthen service life.
4. Safety using: Air compressor motors equipped with thermal prevention device to avoid overheating and protect motors.
5. Clean tank: All air receiver tanks have internal epoxy coating applied to avoid corrosion.
6. Automatic adjustment: High quality pressure switch used to control the power of air compressor automatically by adjustment of pressure level.
7. Pressure adjustment: Working pressure could be adjusted to meet the demand of different supporting equipments.
8. High durability: Serviceable time exceeds 15, 000 hours.
9. Simple operation: Using directly when connecting with power.
10. Easy maintanance: No need any lubricated oil.
11. Warranty: 2 years.
Production Process:
Certificate:
Contact Us For Quote Now!
Tel: 86-512-82627666
Fax: 86-512-82603908
Add: NO108 Xingpu Road, Lujia Town, Kunshan City, Jiangsu Province, China
Tel: 86-512-82627666
Fax: 86-512-82603908
Add: NO108 Xingpu Road, Lujia Town, Kunshan City, Jiangsu Province, China
Mini air compressor
Model: TC-196
Air output per min. /liters30~35L/minAir output per min. /liters30~35L/min
Double switch: Switch 1: Auto stop, start at 3BAR, stop at 4BAR
Switch 2: Max pressure at 6 BAR. Safety valve: Release the air pressure automatically when the pressure over 6 BAR in the air tank.
Air tank: 3.5L
Pressure adjust range: 0.2~6 BAR
Fitting: Manometer; Pressure regulator; Air filter
Start-up pressure/OFF pressure: 0.55/0.8 Mpa
Connections: With connection 1/8'' BSP
Weight: 7.2KG
Dimension: 320X135X350MM
Work environment temperature: +5~+40 ºC
Work environment humidity: ≤ 80% RH
Work environment atmospheric pressure: 90~106 KPa
Continuous operating time: ≤ 4h
Double switch: Switch 1: Auto stop, start at 3BAR, stop at 4BAR
Switch 2: Max pressure at 6 BAR. Safety valve: Release the air pressure automatically when the pressure over 6 BAR in the air tank.
Air tank: 3.5L
Pressure adjust range: 0.2~6 BAR
Fitting: Manometer; Pressure regulator; Air filter
Start-up pressure/OFF pressure: 0.55/0.8 Mpa
Connections: With connection 1/8'' BSP
Weight: 7.2KG
Dimension: 320X135X350MM
Work environment temperature: +5~+40 ºC
Work environment humidity: ≤ 80% RH
Work environment atmospheric pressure: 90~106 KPa
Continuous operating time: ≤ 4h
Features:
Twin Cylinder Piston Compressor
Powerful and high air flow, low noise.
Thermally protected.
Auto release pressure and restart function.
Constant pressure and Zero pulsation.
Double switch:
Switch 1: Auto stop at 4BAR
Switch 2: Max pressure at 6 BAR.
Certificate: CE, GS, ETL, cETL, RoHS
