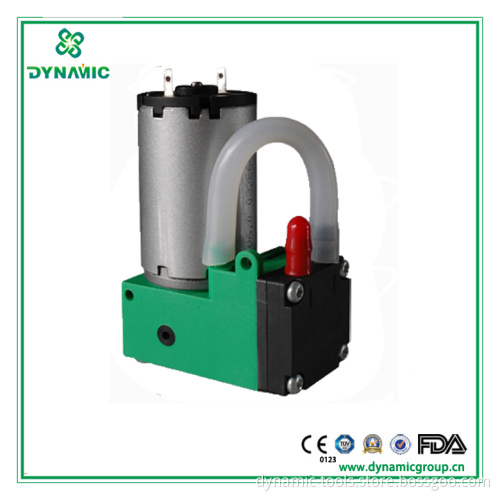

Micro Diaphragm Pump Mini Air Pump (MP65/3)

Micro Diaphragm Pump Mini Air Pump (MP65/3)

Model: MP65/3

Rated Voltage: 6V

Rated Current: 1A

Noisel: 65 dB (30 cm away)

Fluid Applied: Air

Outlet Port O. D.: 6.5mm

Vacuum Air flow: 3L/M

Maximum Pressure: 1.8 Bar

Maximum Vacuum: -65Kpa

Weight: 190G

Dimensions: 73*31*53mm

Working Temperature: 0-40

Remark: Having brush


Characteristic:

1. Low power consumption: With low current, power and consumption, use 6V AC;

2. Sophisticated design: With small size, sophisticated appearance and compact structure, can be mounted in any direction;

3. Durable: In normal operation, the service life is beyond 3000 hours;

4. Oil-free: With oil-free design, the output air and its transfer are oil-free and clean.

5. Ultra Silent: Low Noise Level, No Pulsation and Noise Pollution

6. Stability: Continuous Running for 24 hours, and No Interruption with Much Moistures

7. Easy Maintenance: No Adding Lubricated Oil, and No Maintenance after Purchased

8. Applications: Portable Instruments, Equipment Gas Sampling, Patient Monitor, Sphygmomanometer,

Glucose Meter, Oximeter, Hairdressing Equipments, Chemical Analysis, Analytical Instrument, Laboratory

Equipment, Environment Detection, Biotechnology, Life Science, Printing, Pharmacy, Automation Braking

And related fields.
