High Quality Waste Plastic Bottle HDPE Washing Machines

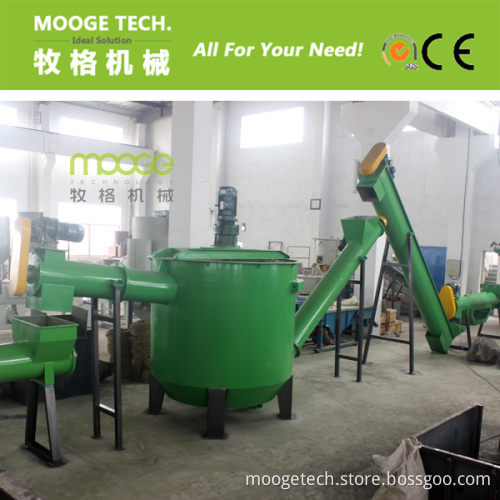

MEB-Series High Quality Waste Plastic Bottle HDPE Washing MachinesIntroductionApplication: Used to recycling baled or loose HDPE/PE/PP bottlesProduct size: <18mm or customizedCapacity: >500 KG Per HourMoisture content remain: <1%Production Process1. Label Removing — 2. Size Reduction — 3.1st Friction Washing — 4. Hot Washing — 5.2ND Friction Washing — 6. Density Separation & Washing— 7. Moisture Reduction — 8. Product CollectingMain Machines & FunctionLabel RemoverΔ Used to peeling the labels from plastic bottles by high speed bladesΔ Working without waterΔ Label separation rate >95% (for round bottle)CrusherΔ Used for size reduction of plastic bottles into flakesΔ V-shape rotor design for high efficiencyΔ Capacity: 500-600kg/hr (screen mesh size: 18mm)Friction WasherΔ Used to scrubbing the flakes by high speed blades to remove dirt and waterΔ High speed (800rpm) for high efficiencyHot Washing TankΔ Used to washing the flakes by hot water to remove glue and greasy dirtΔ Feeding caustic soda/detergent to washΔ Heating by electricity or customizedΔ Tank outside with heating protecting layer made of rockwoolΔ Special design for PP/PE recyclingSink-Float TankΔ Used to separating the sinkable contamination and cleaning the PP/PE flakes by rolling drumsΔ Sink-float tank designed with 5PCS automatic drums on top for flakes cleaning and conveyingΔ The side dirt lift screw conveyor is optionalDrying MachineΔ Including vertical dewatering machine and hot air drying systemΔ Used to reducing moisture content remain from the flakes by high speed blades and hot airΔ Dewatering machine spinning speed: 1200rpmΔ Drying system heating by electricityΔ Final moisture content remain <1%Electric Control CabinetΔ With thermal relay to projecting the enginΔ With overloaded alarm and protecting systemΔ With emergency shut off controlOptional MachineTrommel SeparatorΔ Used to loosening the bottles and screening out the dirt, sand, soil from bottlesΔ Installed before label separation unitZigzag Label & Dust SeparatorΔ Used to sucking out the label flake remain and fine dust from finished productΔ Installed before collecting silo
