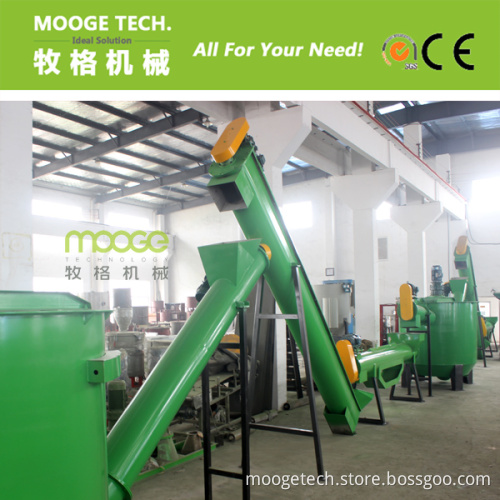

HDPE Bottle Washing Recycling Line

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

MEB-500 PP HDPE Bottle Washing Recycling Line

Introduction

Application: used to recycling baled or loose hdpe/pe/pp bottles
Crusher screen mesh size: 18mm or customized
Capacity: >500 KG Per Hour

Main Machines & Function

HDPE Bottle Washing Recycling Line

Label Remover
Δ used to peeling the labels from plastic bottles by high speed blades
Δ working without water
Δ label separation rate >95% (for round bottle)

Crusher
Δ used for size reduction of plastic bottles into flakes
Δ v-shape rotor design for high efficiency
Δ capacity: 500-600kg/hr (screen mesh size: 18mm)

Friction Washer
Δ used to scrubbing the flakes by high speed blades to remove dirt and water
Δ high speed (800rpm) for high efficiency

Hot Washing Tank
Δ used to washing the flakes by hot water to remove glue and greasy dirt
Δ feeding caustic soda/detergent to wash
Δ heating by electricity or customized
Δ tank outside with heating protecting layer made of rockwool
Δ specially designed for PP/PE recycling

Sink-Float Tank
Δ used to separating the sinkable contamination and cleaning the PP/PE flakes by rolling drums
Δ sink-float tank designed with 5pcs automatic drums at the top for flakes cleaning and conveying
Δ the side dirt lift screw conveyor is optional

Drying Machine
Δ including vertical dewatering machine and hot air drying system
Δ used to reducing moisture content remain from the flakes by high speed blades and hot air
Δ dewatering machine spinning speed: 1200rpm
Δ heating by electricity
Δ final moisture content remain <1%

Electric Control Cabinet
Δ with thermal relay to projecting the engin
Δ with overloaded alarm and protecting system
Δ with emergency shut off control

Optional Machines

HDPE Bottle Washing Recycling Line
Trommel Separator
Δ used to loosening the bottles and screening out the dirt, sand, soil from bottles
Δ installed before label separation unit

Zigzag Label & Dust Separator
Δ used to sucking out the label flake remain and fine dust from finished product
Δ installed before collecting silo
