Plastic PP PE Film Recycling Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang, Jiangsu
Payment Type:	L/C, T/T

Product Description

ME-Series Plastic PP PE Film Recycling Machine

Introduction

Material: Baled or loose plastic bag/film/woven bag/jumbo bag
Finished product: Clean & dry plastic film flakes
Flake size: 30-40mm
Purpose of use: Be used to making PP/PE granules
We can customize the washing line according to client's requirement.

Production Process

1. Size Reduction----2. Friction Washing---3. Floatation Washing---4. Moisture Removal
---5. Product Collecting

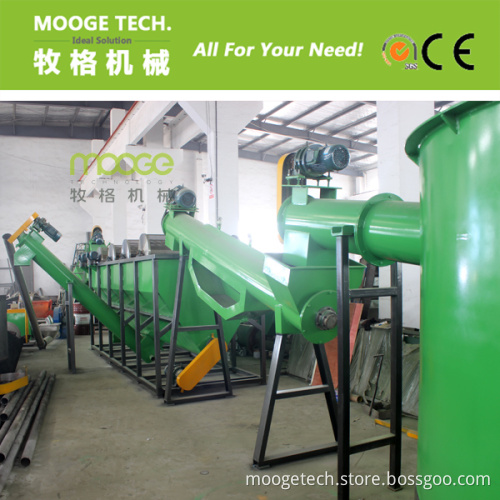

Machine Pictures

Plastic Film Crusher
Plastic PP PE Film Recycling Machine

Sink-Float Tank (With Side Dirt Lift Screw Conveyor)
Plastic PP PE Film Recycling Machine

Film Flakes Dewatering Machine
Plastic PP PE Film Recycling Machine

Technical Data

Model: ME-300
Capacity: >300kg/hr
Installed power: 122.9KW
Water supply: 3-5 ton/hr
Manpower: 3 person
Estimate line size: 28m*2.5m*3.5m

Model: ME-500
Capacity: >500kg/hr
Installed power: 179.5KW
Water supply: 3-5 ton/hr
Manpower: 3 person
Estimate line size: 30m*2.5m*3.5m

Main Machines & Function

Plastic Crusher (Wet Type):
Used for size reduction of material into flakes;
With water inlet for wet crushing;
V-shape rotor design specially for film crushing;
Screen size: 100mm*20mm (length*width);
Output size: 30-40mm;
Blade material: Real and total SKD-11;
Screen thickness: 10mm for long time use.

Friction Washer:
Used to scrubbing flakes by high speed blades to remove dirt and water;
Rotating speed: 800rpm for high efficiency;
With water spray system to wash out the dirts.

Sink-Float Tank:
Used to cleaning flakes, density separation dirt from flakes, transporting flakes out by rolling drums,
Transporting dirt by bottom drain screw;
Drum quantity: 5PCS;
Screw thickness: 5mm.

Dewatering Machine:
Used for removal of moisture from flakes by high speed blades;
Moisture content remain: 5-8%;
Rotating speed: 1500rpm for good drying performance.

Hot Air Drying System:
Used for reducing moisture content from flakes by hot air;
Moisture content remain: <3%.

Optional Machine

Hot Washing Tank:
With hot & chemical water washing to remove glue and greasy dirt from flakes;
Heating by electricity or customized;
Tank outside with heating protecting layer by rockwool insulation.
