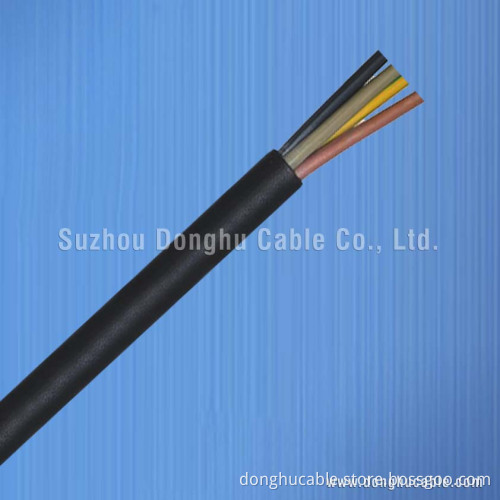

Rubber Cable (H07RN-F)
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description
Application
For connecting of power tools, mobile units and machines for medium mechanical requirements in dry and humid rooms, for outdoor use, in explosive areas, in commercial and agricultural plants and on construction lots. Also suitable for directly laying on modules of hoisting devices, machinery etc.
Cable make-up
Conductor: Strands of plan copper wire acc. To IEC 60228 and DIN VDE 0295 class 5
Insulation: Rubber compound
Sheath: Polychloroprene
Technical data
Rated voltage U0/U: 450/750V
Test voltage (V/min): 2500/5
Min. Bending radius: 6× D (overall diameter)
Range of temperature: Flexing -30~+60 degree Celsius
Product standard
In acc. With DIN VDE 0282 part 4
Further types of cables according to BS (British Standard), VDE, HAR, UL are available on request.
For connecting of power tools, mobile units and machines for medium mechanical requirements in dry and humid rooms, for outdoor use, in explosive areas, in commercial and agricultural plants and on construction lots. Also suitable for directly laying on modules of hoisting devices, machinery etc.
Cable make-up
Conductor: Strands of plan copper wire acc. To IEC 60228 and DIN VDE 0295 class 5
Insulation: Rubber compound
Sheath: Polychloroprene
Technical data
Rated voltage U0/U: 450/750V
Test voltage (V/min): 2500/5
Min. Bending radius: 6× D (overall diameter)
Range of temperature: Flexing -30~+60 degree Celsius
Product standard
In acc. With DIN VDE 0282 part 4
Further types of cables according to BS (British Standard), VDE, HAR, UL are available on request.
