Instrumentation cable
PVC/OS/PVC
Application
Served as interconnection between electrical equipment and instruments, particular in and around process plants where transducer generated signals are transmitted through to panels, controllers and other devices.

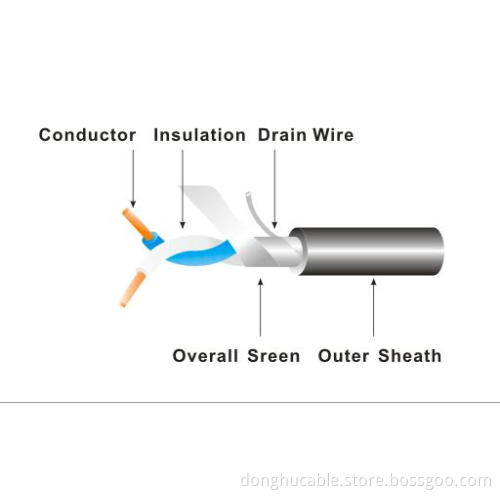

Cable make-up
Conductor: Strands of plan copper wire acc. To IEC 60228 and BS EN 60228: 2005class 1, 2 or 5
Insulation: PVC
Screen: AL/PE tape with 0.5mm2 drain wire
Sheath: PVC
Technical data
Rated voltage U0/U: 0.6/1KV
Test voltage (V/min): 3000/5
Min. Bending radius: 15× D (overall diameter)
Range of temperature: Flexing -5~+50 degree Celsius
Static -30~+70 degree Celsius
Product standard
BS EN 50288-7
PVC/OS/PVC
Application
Served as interconnection between electrical equipment and instruments, particular in and around process plants where transducer generated signals are transmitted through to panels, controllers and other devices.
Cable make-up
Conductor: Strands of plan copper wire acc. To IEC 60228 and BS EN 60228: 2005class 1, 2 or 5
Insulation: PVC
Screen: AL/PE tape with 0.5mm2 drain wire
Sheath: PVC
Technical data
Rated voltage U0/U: 0.6/1KV
Test voltage (V/min): 3000/5
Min. Bending radius: 15× D (overall diameter)
Range of temperature: Flexing -5~+50 degree Celsius
Static -30~+70 degree Celsius
Product standard
BS EN 50288-7
