Data Cable RE-2Y(ST)Yv PiMF
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description
Application
Mainly used as control and signal cable in computers for processing large volumes of data. It is suitable for dry and damp indoors.

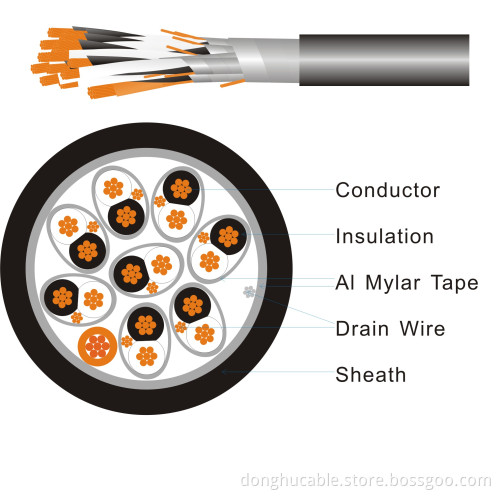

Cable make-up
Conductor: Fine strands of bare copper wire or tinned copper wire acc. To IEC 60228 and VDE 0295 class 5
Insulation: PE
Core identification: Black and white cores with consecutive numbers in the contrast color. Besides, communication core is orange.
Individual Screen: Al mylar tape with plain copper drain wire
Overall Screen: Al mylar tape with tin plated drain wire
Sheath: Reinforce PVC
Sheath colour: Black (RAL 9005)
Product standard
In acc. With DIN VDE 0245, 0812 and 0281
Mainly used as control and signal cable in computers for processing large volumes of data. It is suitable for dry and damp indoors.
Cable make-up
Conductor: Fine strands of bare copper wire or tinned copper wire acc. To IEC 60228 and VDE 0295 class 5
Insulation: PE
Core identification: Black and white cores with consecutive numbers in the contrast color. Besides, communication core is orange.
Individual Screen: Al mylar tape with plain copper drain wire
Overall Screen: Al mylar tape with tin plated drain wire
Sheath: Reinforce PVC
Sheath colour: Black (RAL 9005)
Product standard
In acc. With DIN VDE 0245, 0812 and 0281
