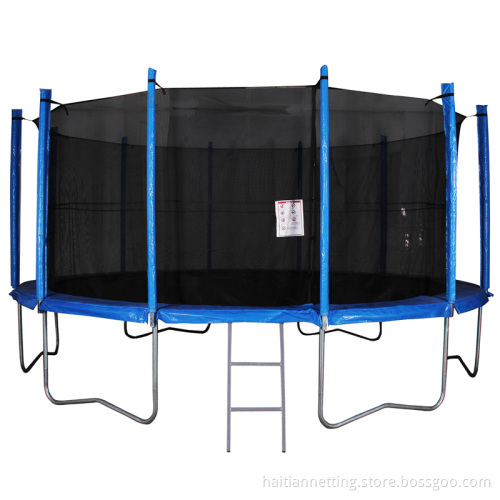

16 Ft Trampoline with Safety Net (16FT)

                                              16 ft round trampolne with safety net

16ft round trampoline with safety net

1) Max users weight is 180kg
2) TUV-GS, CE, LGA certificate

Specification of standard 16ft trampoline:

1. Frame dimension: 4850mm(D) x 960mm(H)
2. Jumping mat: PE/PE mesh with UV resistant function.
3. Frame tube: Hot galvanized Φ 45mm(D) x 1.5mm(T).
4. "W"sharp leg: Hot galvanized Φ 38mm(D) x 1.3mm(T) x 6PCS.
4. Spring: 96PCS Φ 3.2mm x 30N.
5. Frame Pad: 13mm thickness EPE foam to be clothed by PE/ PVC.
6. Reinforce "T" Connect Bracket: 45mm x 2mm x 12PCS.

Specification of enclosure (safety net):

1. Steel Pillar: 25.4mm(D) x 1.3mm(T) x 1800mm(H) x 12PCS.
2. Net Material: Polyester.
3. Net mesh size: 4 x 5(mm).
4. Net Set-up Way: Internal or External.

N. W. / G. W.: 103/116(kgs).

Packing Size(carton): 143 x 48 x 22(cm) x 2PCS + 106 x 28 x 21(cm).

20' FCL / 40' FCL: 80/160sets.

Specification of Accessories:

1. Rain Cover
Material/weight: PE 100G/M2.

2. Ladder
Steel Tube (with outdoor PVC coating) 25x25x1.3(mm) Square tube.
