High Quality Ceiling T Grid with Zinc 80G/M2
- Payment Type:
- L/C, T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T, Paypal, Western Union |
Product Description
Product Description

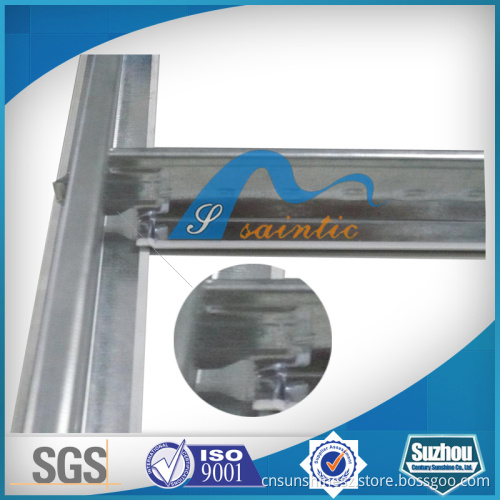

Metal standard T Grid:
Name and introduction:
1)Tee Grid Ceiling is also named Ceiling Suspension System, T-Bar,
Ceiling Tee, Ceiling Profile, Profile System, Ceiling Keel and other
Names in differentent markets.
2)The easy assembly method of the Ceiling Suspension System
Facilitates a fast and convenient way for installation/uninstallation.
Its nature of fire-resistance is far more superior to the traditional
Interior decoration materials of wood.
3) It is available for various kinds of Ceiling Panels together with
Installation, like Mineral Fiber Board, Gypsum Board, PVC Laminated
Gypsum Ceiling Board, Metal Ceiling Panel and so on.
Installation steps:
1). Determine the requirment ceiling level, mark the position and fix wall angle on the wall.
2). Hang main tee with T-bar suspension hook.
3). Insert cross tee to the main tee.
4). Cross tee adjacent to wall angle light fittings
5). Adjust the levels and alignments throughout the entire grid system accurately
6). Install PVC gypsum ceiling tile or other ceiling panel.
Advantages:
1. A grade fireproof by mainland china's NFTC.
2. Made from natural inorgnanic materials. 100% no asbestos, innocuity.
3. Huge output, short delivery time. Producing up to 38000m2 daily.
4. Can be customized for your project, for your request. Eg: 1200*3600mm
Specification and Packaging:
Name and introduction:
1)Tee Grid Ceiling is also named Ceiling Suspension System, T-Bar,
Ceiling Tee, Ceiling Profile, Profile System, Ceiling Keel and other
Names in differentent markets.
2)The easy assembly method of the Ceiling Suspension System
Facilitates a fast and convenient way for installation/uninstallation.
Its nature of fire-resistance is far more superior to the traditional
Interior decoration materials of wood.
3) It is available for various kinds of Ceiling Panels together with
Installation, like Mineral Fiber Board, Gypsum Board, PVC Laminated
Gypsum Ceiling Board, Metal Ceiling Panel and so on.
Installation steps:
1). Determine the requirment ceiling level, mark the position and fix wall angle on the wall.
2). Hang main tee with T-bar suspension hook.
3). Insert cross tee to the main tee.
4). Cross tee adjacent to wall angle light fittings
5). Adjust the levels and alignments throughout the entire grid system accurately
6). Install PVC gypsum ceiling tile or other ceiling panel.
Advantages:
1. A grade fireproof by mainland china's NFTC.
2. Made from natural inorgnanic materials. 100% no asbestos, innocuity.
3. Huge output, short delivery time. Producing up to 38000m2 daily.
4. Can be customized for your project, for your request. Eg: 1200*3600mm
Specification and Packaging:
|
Name |
Type | Dimension(mm) | Width(mm) | Length(mm) | Thickness(mm) |
| Main tee |
38T Flat | 38×24 | 24 | 3600/3660 | 0.2-0.35 |
| 32T Flat | 32x24 | 24 | 3600/3660 | 0.2-0.35 | |
| Cross tee |
26T Flat | 26×24 | 24 | 1200/1220 | 0.2-0.35 |
| 24T Flat | 24×24 | 24 | 1200/1220 | 0.2-0.35 | |
| Cross tee |
26T Flat | 26×24 | 24 | 600/610 | 0.2-0.35 |
| 24T Flat | 24×24 | 24 | 600/610 | 0.2-0.35 | |
| Wall angle |
L-shaped | 22×20 | 3000 | 0.2-0.35 | |
| L-shaped | 24x24 | 3000 | 0.2-0.5 | ||
| Name | Type | Dimension(mm) | Width(mm) | Length(mm) | Thickness(mm) |
| Main tee |
28T groove | 28×24 | 24 | 3600/3660 | 0.2-0.35 |
| 32T groove | 32×15 | 15 | 3600/3660 | 0.2-0.35 | |
| Cross tee |
32T groove | 32×15 | 15 | 600/610 | 0.2-0.35 |
| 28T groove | 28×24 | 24 | 600/610 | 0.2-0.35 | |
| Wall angle |
L-shaped | 22×20 | 3000 | 0.2-0.5 | |
| L-shaped | 24×24 | 3000 | 0.2-0.5 |
