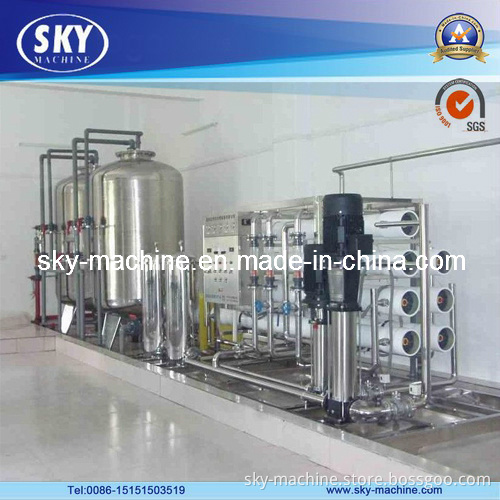

Industrial RO Water Treatment System

Industrial RO Water Treatment SystemRO water filter system can treat tap water, well water, brackish water and sea water. This water filter can be used for drinking water, bottled water and industrial. Water filter using the advanced skills of reverse osmosis to purifying water. The RO membrane of this water filter is USA Hydranautics, this is the best RO membrane brand. 1. The process of Reverse Osmosis systemRaw water-- Raw water tank --Raw water pump --Quartz sand filter-- Active carbon filter-- Security filter-- high pressure pump-- RO system--Pure water tank-- UV/Ozone --Pure Water1). Raw water pump-- provide the pressure to quartz sand filter/active carbon filter2). Quartz filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc. 3). Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc. 4). Water Softener--using ion exchange resin to exchange "ions" of calcium and magnesium is the most common and the easiest method of removing hardness of water and render the water suitable for utility purpose5). Security filter--It is also called cartridge Filter, prevent any deposition of large Particles, most of the bacteria, and viruses into the UF membrane and RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity. 6). High pressure pump-- The high pressure pump is used for make sure there are enough water for satisfying designed production capacity. 7). RO (reverse osmosis) system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic2. Application field: 1). Electronics2). Power system3). Metallurgical industry4). Chemical industry5). Medical and pharmaceutical industry6). Foods and beverage industry7). Treatment of industrial sewage and waste water8). Brackish water desalination etc3. The feather of Reverse Osmosis system1). Can production water continuously and highly automatic2). No need the chemical regeneration, easy operation3). RO system choose the import USA Hydranautics membrane4). Automatic switch on when low water level, and switch off when high water level5). RO membrane can backwash automatic and reduce the pollution. 6). Water shortage protection for multi-stage pump7). Production water conductivity meter can test the monitoring quality on line continuously. 8). Low operation Cost and Long life span9). It is PC program controller10). Easily control and Maintained. 11). Auto membrane flushing12). Environmental protection, Low power consumption13) Auto flush/backwash14) Low /high pressure protectionWe are professional water treatment manufacturer located in China.
