Automatic Yogurt Cup Forming Filling Sealing Machine

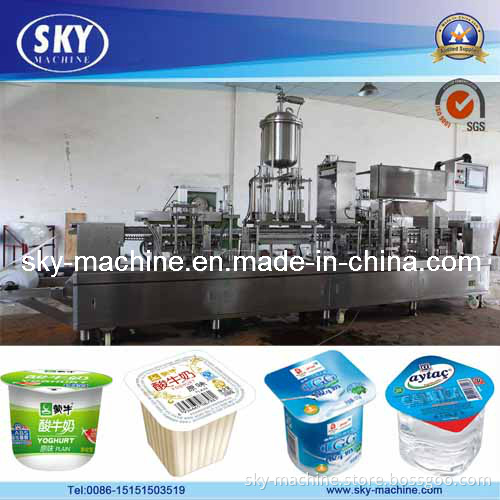

Automatic Yogurt Drink Cup Forming Filling Sealing MachineApplication: Automatic Yogurt Drink Cup Forming Filling Sealing Machine is used for production of mineral water, yogurt, milk, fruit juice, jam and condiment etc. It can automatic complete the cup thermoforming, filling and sealing, product output etc in one machine. Machine Feature: 1. Plastic Cup form fill and seal machine can fill soybean milk, water, yogurt, jam, juice, ice-cream, condiment etc. 2. Process from plastic cup forming, filling, sealing, date printing, cutting and product transportation is completed full - automatically. 3. These machines are equipped with world famous top brands systems of servo drive, PLC, touch panel, temperature control, photoelectric control, pneumatic control, automatic lubricating, etc. 4. Plastic Cup form fill and seal machine full-automatic equipments for high-quality, high-efficiency, low power consumption production in modernized enterprises. Main technical parameter: Filling capability: 10-200mlMax production capacity: 6000cups/hour(100ml)Filling precision: Within 1%Sealing quality percent of pass: ≥ 99.5Electricity supply: 3N-PN-50Hz, 380V/220VExternal dimensions: 6150mm X 1150mm X 2400mmRoll Film material: Three-layer complex filmAir pressure: 0.6Mpa minAir consumption: 1.6M3/minTotal power: 30KwTotal weight: 2800KgRemark: We can provide the customized product according to customer's demand. Main Parts: 1. Bottom Film driving systemChain Film storage unit2. Pre-heating& formingPre-heating boardAir cylinder (Japan SMC)Switch (Japan Omron)Bearing (Germany IGUS)Temperature. Sensor(Japan Omron)Heating pipe3. Filling systemFilling valveFilling headStorage jarAir cylinder (Japan SMC)Pneumatic valveSwitch (Japan Omron)Sealing ringButterfly gate4. Sealing Film driving systemFilm storage platformDate printing unitClutchColor sensorAir cylinder (Japan SMC)Adjusting unit5. Sealing& cooling systemSealing board (Japan non-stick plating)Air cylinder (Japan SMC)Oil-free lubrication unitTemp. Sensor(Japan Omron)Heating pipe6. Cutting systemCutter combinationReducerSwitch (Japan Omron)Oil-free lubrication unit (Germany IGUS)7. Main driving systemServo driving (Japan Mitsubishi)Switch (Japan Omron)Driving chain unit8. Controlling systemJapan Panasonic PLCHuman-machine interface (Japan Proface)Stainless steel electrical control cabinetLow-voltage apparatus (buttons, contactor, air switch, motor protection, Japan)Sensor (Japan Omron)Transducer (Japan Mitsubishi)9. FrameSupporting board: Stainless steelChassis: (100X50X5) stainless steel tubeStainless steel faceplate
