Extrusion Blow Molding Machine

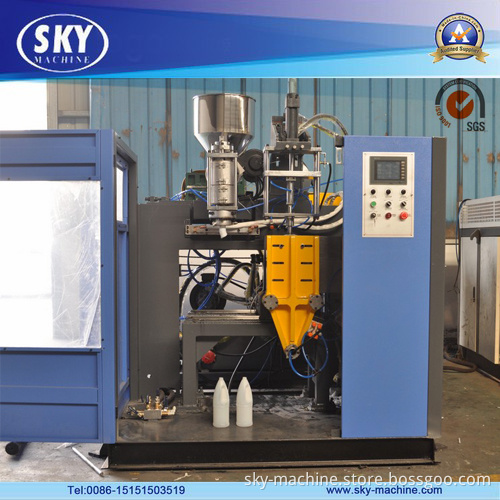

Automatic Plastic Bottle Extrusion Blow Molding Machine1. Model: SKY50-2L2, Maximum product volume: 2LGeneralSKY50-2L extrusion blow molding machine, This single station machine can be equipped with 1 to 4 die head, Compatible for the production of bottles from 5ml up to 2liters made out of PE, PP, PETG and PVC, Suiting for the packaging of cosmetics, petroleum, chemicals, pharmaceuticals, food products and toys. This machine is designed for producing high quality articles with small size. Description: For bottles from 5ml up to 2LWith 1 to 4 fold die headCenter input die headMulti-layer and visual stripe headMax clamping force 40KNLinear rolling motion guider equippedEasily operation by PLC+touch screenImported hydraulic componentParison programmer can be adoptParameter: Dry cycle 1500 PCS/HScrew diameter 50mmScrew L/D ratio 22Screr drive power 11KWHDPE output 35KG/HOil Pump Power 5.5KWClamping force 40KNMold stroke 128-368mmTemplate size 300*320mmMax Die diameter 100mmMachine size 2.5*1.7*2.3mMachine weight 3.2TProduct Pictures:
