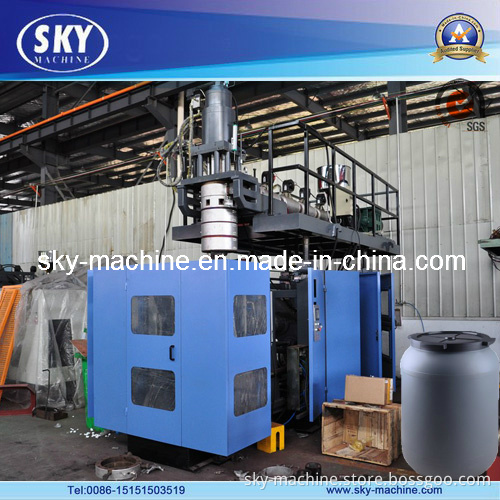

Chemical Drum Extrusion Blow Molding Machine

Chemical Drum Extrusion Blow Molding Machine1, Model: SKY-90N2, Product volume: 20~60LSKY90N-60L Chemical Drum Extrusion Blow Molding Machine, This single station machine is equiped with accumulator die head, for the production of articles for 20liter to 60liters made out of PE, PP and ABS, suiting for the packaging of petroleum, chemicals products, toys, tech-and auto-parts. This machine is designed for producing high quality, bigger size and complex parts. Description: For containers from 20L up to 60LWith 6.6L accumulator headMax clamping force 350KNLinear rolling motion guider equippedEasily operation by PLC+touch screenImported hydraulic componentEnergy saving hydraulic designEquipped with take out robotParison programmer can be adoptMulti-functional bottom blow mechanismServo motor can be equippedParameter: Dry cycle 500 PCS/HScrew diameter 90mmScrew L/D ratio 25Screw driver power 37KWScrew heat power 21KWHDPE output 140KG/HOil Pump Power 17KWAccumulator capacity 6.6LClamping force 350KNMold stroke 500-1200mmTemplate size 950*900mmMax Die diameter 350mmMachine size 5.1*2.5*3.9mMachine weight 12.8T
