PVC Double Wall Corrugated Pipe Extrusion Line (110)

PVC double wall corrugated Pipe Production Line.
Diameter: ID 50- OD 250mm.

Extruder: Conical Twin Screw Extruder assures high speed extrusion.
Die Head: UPVC diffluence trestle type die head with special channel.

Corrugator: Horizontal type, Chain transmission, Sraying water cooling.
Blowing Forming corrugator or Vacuum Forming corrugator can give powerful advantage to customer in market competition by low price and perfect out-looking of pipes.

Mould Blocks: Alternative Cast Iron Mould Blocks or Found Aluminium Mould blocks meets different function requirements of buyers'.
Outside water cooling assures efficiency linear speed of pipes with perfect forming.

Belling Machine: UPVC equipped with inline auto Belling Machine
Cutter: CIR-saw automatic meter counting cutter.
Stacker: Full automatic stacker.
Control: PLC Control System with all famous brand Electronic Components.


PVC double wall corrugated pipe extrusion line is made up of machines as follows:
Spiral Feeder
SRL-Z200/500 high speed mixer unit
Spring feeder
SJSZ65/132 conical twin screw extruder
Mould

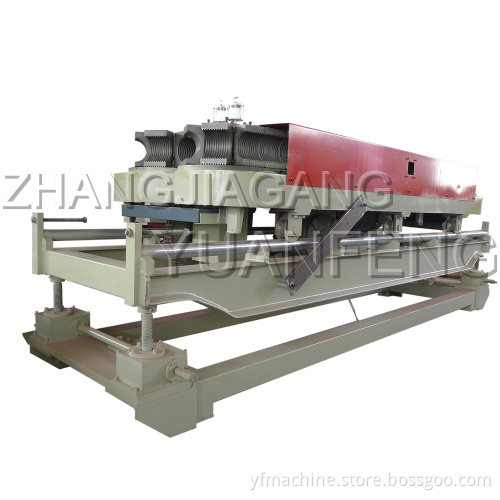

PVC double wall corrugated pipe forming machine
Belling machine/circular cutting machine
Collection tilt
