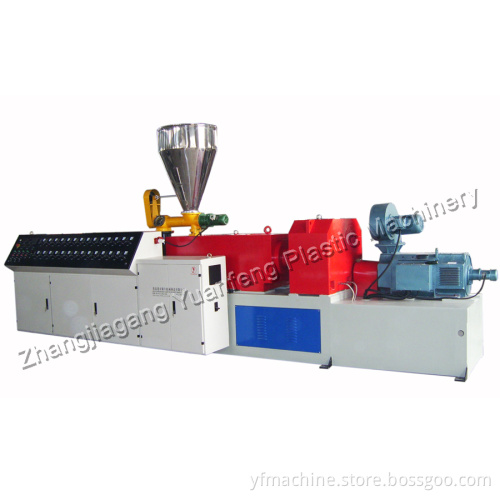

Conical Twin Screw Extruder Machine (SJSZ92/188)

 SJSZ92/188 Conical Twin Screw Extruder/Extrusion/Extruding Machine

• Diameter of Screw: 92/188mm;
• REV Speed of Screws(r/m): 1-34;
• Effective length of screws(mm):2520;
• Main Motor Power: 90KW, DC, CE approval;
• Feeding screw power:1.5kw;
• Vacuum power: 2.2KW;
• Granulator power: 1.5KW, 3 groups of blades;
• DC Converter: EUROTHERM ;
• Barrel and screw are made of nitride steel(38CrMoAlA);
• Barrel cooling via independent low noise fans;
• Fan cooling power (for barrel): 0.37KW*7sets;
• Barrel heater: cast aluminum heater;
• Barrel heating power: 58KW;
• 5 barrel heater zones, 4 mould heating zones;
• Temperature Control: be controlled by OMRON PID temperature controller;
• Granulator method: hot-cutting;
• Including a mould head and granulator;
• Low-voltage electric elements: SIEMENS/SCHNEIDER;
• With a control cabinet;
