200ml~1.5L PET Water Bottle Blow Moulding Machine (ABLB65II)
  • 200ml~1.5L PET Water Bottle Blow Moulding Machine (ABLB65II)
200ml~1.5L PET Water Bottle Blow Moulding Machine (ABLB65II)

200ml~1.5L PET Water Bottle Blow Moulding Machine (ABLB65II)

Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Zhangjiagang City, Jiangsu Province, China
Payment Type: L/C, T/T
Product Description
Product Description

Product Description

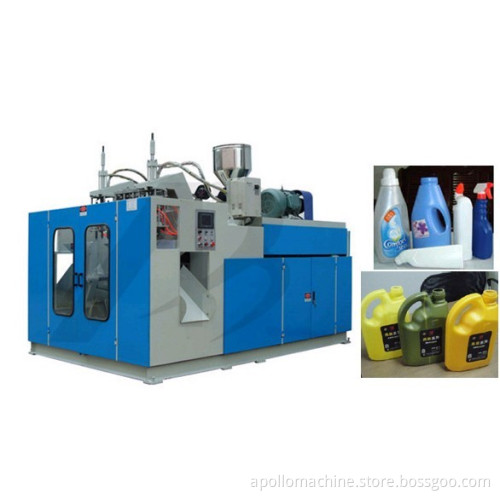

ABLB65IIplastic blow moulding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 4L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 4L.
(2)Double station three die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
Max. Product volume 4 liters
Out put capacity 180~210 pc/h
Screw diameter 65mm
Screw L/D ratio 24 L/D
Screw drive power 18.5 KW
Screw heating capacity 6 KW
No.of heating zone 3 zones
Output of HDPE 80KG/H
Oil pump drive power 7.5 KW
Clamping force 45KN
Max.size of mold 80-350mm
Mold stroke 320 X 360mm
Max.die diameter 140mm
Blowing pressure 0.6 mpa
Air Volume 0.6 M³/MIN
Cooling water pressure 0.3mpa
Water consumption 65 L/MIN
Size of Machine 2.95x2x2.7m
Weight of machine 4.7ton
