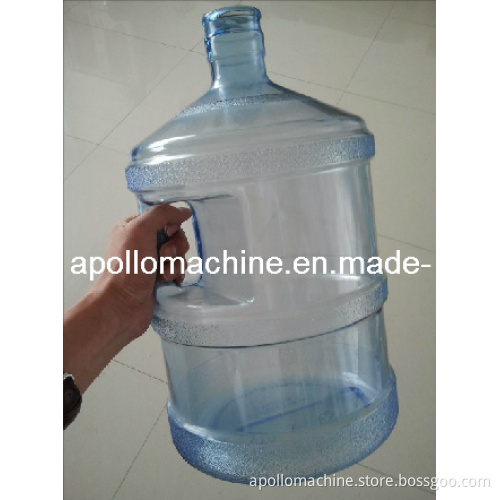

PC Bottles Making Machine (5 Gallon)

APOLLO-PC25L PC Extrusion blow molding machine / PC Extrusion blow moulding machine is designed for producing 5 gallon PC bottles, with the relatively low capital investment and output rates of up to 100 PBH, the extrusion blow molding process provides high quality PC water bottles at very attractive costs. Additionally, the extrusion blow molding process offers decisive benefits due to a virtually unlimited design freedom in terms of bottle geometry and easy incorporation of handles

For more detailed info., please feel free to contact me

Max. Product volume	5 gallon	Dry cycle	600pc/h
Screw diameter	80 mm	Screw L/D ratio	25 L/D
Screw drive power	30 KW	Screw heating capacity	16 KW
No.of heating zone	4 zones	Output of HDPE	100 KG/H
Oil pump drive power	22 KW	Clamping force	210 KN
Max.size of mold	550X650mm	Mold stroke	350-780mm
Max.die diameter	280mm	Blowing pressure	0.8mpa
Air volume	0.8 M ³ /MIN	Die heating power	5.3 KW
Die heating segments	4 zones
