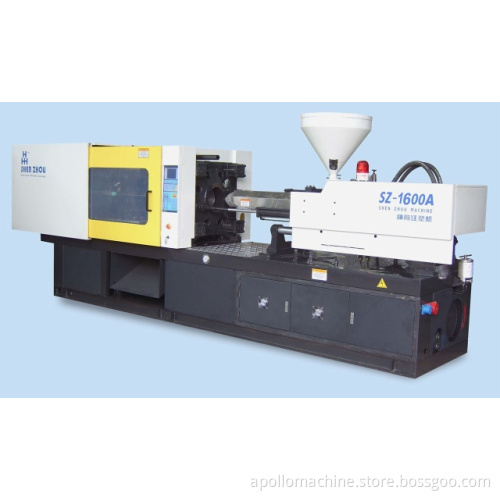

High Speed Plastic Water Bottle Injection Molding Machine (APOLLO-O1600A)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

Shot weight: 326g--486g
Screw diameter: 45mm--55mm
Clamping force: 160ton
Space between tie bars: 480x480mm

Item	Unit	APOLLO-1600A
Injection Unit
Screw Diameter	mm	45 50 55
Screw L/D Ratio	L/D	23.3 21 19.1
Theoretical Shot Volume	cm 3	358 442 534
Shot Weight(ps)	g	326 402 486
Injection Pressure	mpa	219 178 147
Theoretical Injection Rate(ps)	g/s	142 175 212
Plasticising Capacity	g/s	20.1 26.5 34.2
Screw Torque	N.m	1250
Max. Screw Rotate Speed	r/min	200
Injection Stroke	mm	225
Clamping Unit
Max. Clamping Force	KN	1600
Max.Opening Stroke	mm	460
Space Between Tie Bars(VxH)	mm	480×480
Mould height(min-max)	mm	180-500
Max.Daylight	mm	960
Ejector Force	KN	45.2
Ejector Stroke	mm	115
Ejector Quantity		5
Other
Pump Motor Power	KW	15
Pump Pressure	mpa	16
Heating Power	KW	13.6
Heating Zone		4
Size	m	5.3×1.35×1.9
Net Weight	t	5.6
Oil Tank Capacity	L	420
International Designation		1600-785
