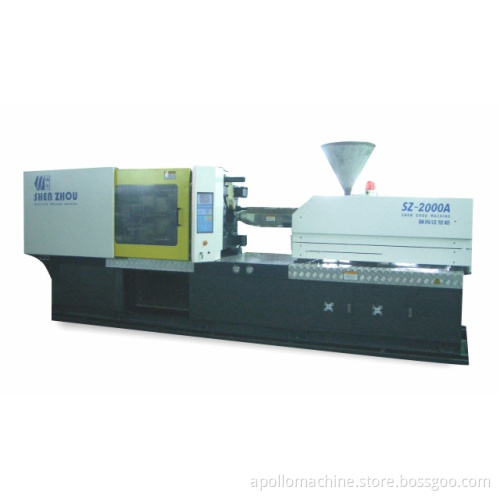

Plastic Injection Molding Machine (APOLLO-2000A)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

Shot weight: 447g--643G
Screw diameter: 50mm--60mm
Clamping force: 200ton
Space between tie bars: 505x505mm

Item	Unit	APOLLO-2000A
Injection Unit
Screw Diameter	mm	50 55 60
Screw L/D Ratio	L/D	23.1 21 19.3
Theoretical Shot Volume	Cm 3	491 594 707
Shot Weight(ps)	g	447 540 643
Injection Pressure	mpa	215 178 149
Theoretical Injection Rate(ps)	g/s	145 175 208
Plasticising Capacity	g/s	22.5 28.7 35.4
Screw Torque	N.m	1510
Max.Screw Rotate Speed	r/min	170
Injection Stroke	mm	250
Clamping Unit
Max.Clamping Force	KN	2000
Max.Opening Stroke	mm	500
Space Between Tie Bars(VXH)	mm	505×505
Mould height(min-max)	mm	190-530
Max.Daylight	mm	1030
Ejector Force	KN	53.1
Ejector Stroke	mm	125
Ejector Quantity		5
Other
Pump Motor Power	KW	18.5
Pump Pressure	mpa	16
Heating Power	KW	16.6
Heating Zone		4
Size	m	5.9×1.5×2.0
Net Weight	t	6.5
Oil Tank Capacity	L	420
International Designation		2000-1060
