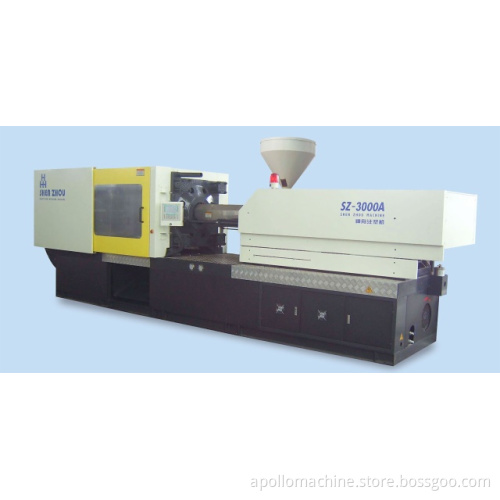

Injection Molding Machine (SZ-3000A)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

Shot weight: 772g--1050g
Screw diameter: 60mm--70mm
Clamping force: 300ton
Space between tie bars: 610x610mm

Item	Unit	APOLLO-3000A
Injection Unit
Screw Diameter	mm	60 65 70
Screw L/D Ratio	L/D	22.7 21 19.5
Theoretical Shot Volume	CM 3	848 995 1154
Shot Weight(ps)	G	772 905 1050
Injection Pressure	Mpa	207 176 152
Theoretical Injection Rate(ps)	g/s	241 283 328
Plasticising Capacity	g/s	35.2 43.3 51.8
Injection Stroke	mm	300
Screw Torque	N.m	2530
MAX. Screw Rotate Speed	r/min	150
Clamping Unit
Max.Clamping Force	KN	3000
Max.Opening Stroke	mm	590
Space Between Tie Bars(VxH)	mm	610×610
Mould height(min-max)	mm	220-630
Max.Daylight	mm	1220
Ejector Force	KN	70.6
Ejector Stroke	mm	150
Ejector Quantity		9
Other
Pump Motor Power	KW	30
Pump Pressure	mpa	16
Heating Power	KW	22
Heating Zone		5
Size	m	6.7×1.75×2.25
Net Weight	t	11
Oil Tank Capacity	L	560
International Designation		3000-1750
