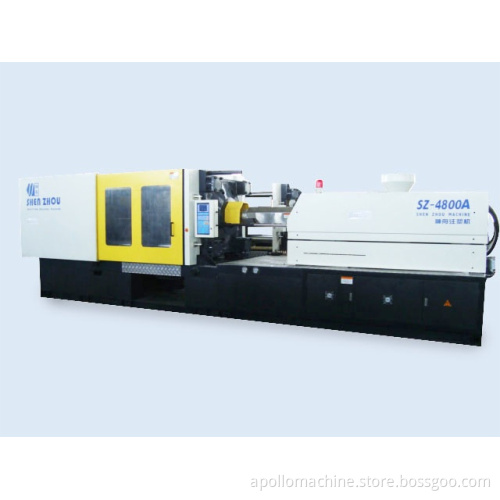

Full-Auto Plastic Injection Molding Machine (SZ-4800A)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

Shot weight: 1225g--1600g
Screw diameter: 70mm--80mm
Clamping force: 480ton
Space between tie bars: 760x760mm

Item	Unit	APOLLO-4800A
Injection Uint
Screw diameter	mm	90 95 105
Screw L/D Ratio	L/D	23.2 22 19.9
Theoretical Shot Volume	CM 3	2861 3188 3894
Shot Weight(ps)	g	2603 2901 3543
Injection Pressure	mpa	195 175 143
Theoretical Injection Rates(ps)	g/s	560 610 700
Plasticising Capacity	g/s	85 100 110
Screw Torque	N.m	7180
Max.Screw Rotate Speed	r/min	130
Injection Stroke	mm	450
Clamping Unit
Max.Clamping Force	KN	7500
Max.Opening Stroke	mm	950
Space Between Tie Bars(VxH)	mm	950×950
Mould height(min-max)	mm	400-960
Max.Daylight	mm	1910
Ejector Force	KN	200
Ejector Stroke	mm	280
Ejector Quantity		17
Other
Pump Motor Power	KW	67
Pump Pressur	Mpa	16
Heating Power	KW	46.45
Heating Zone		6
Size	m	10.1×2.6×2.8
Net Weight	t	40
Oil Tank Capacity	L	1500
International Designation		7500-5580
