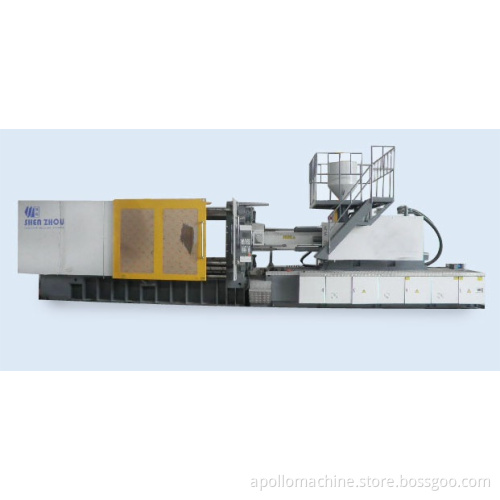

Pet Bottles Injection Molding Machine (SZ-6500A)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

Shot weight: 2091g--2895g
Screw diameter: 85mm--100mm
Clamping force: 650ton
Space between tie bars: 850x850mm

Item	Unit	APOLLO-6500A
Injection Uint
Screw diameter	mm	85 90 95 100
Screw L/D Ratio	L/D	22.3 21 19.9 18.9
Theoretical Shot Volume	CM 3	2298 2576 2870 3181
Shot Weight(ps)	g	2091 2344 2611 2895
Injection Pressure	mpa	206 184 164 149
Theoretical Injection Rates(ps)	g/s	400 448 499 553
Plasticising Capacity	g/s	60 75 85 100
Screw Torque	N.m	6580
Max.Screw Rotate Speed	r/min	125
Injection Stroke	mm	405
Clamping Unit
Max.Clamping Force	KN	6500
Max.Opening Stroke	mm	870
Space Between Tie Bars(VxH)	mm	850×850
Mould height(min-max)	mm	350-900
Max.Daylight	mm	1770
Ejector Force	KN	200
Ejector Stroke	mm	260
Ejector Quantity		17
Other
Pump Motor Power	KW	55
Pump Pressur	Mpa	16
Heating Power	KW	37.15
Heating Zone		6
Size	m	9.3×2.3×2.7
Net Weight	t	32
Oil Tank Capacity	L	1200
International Designation		6300-4710
