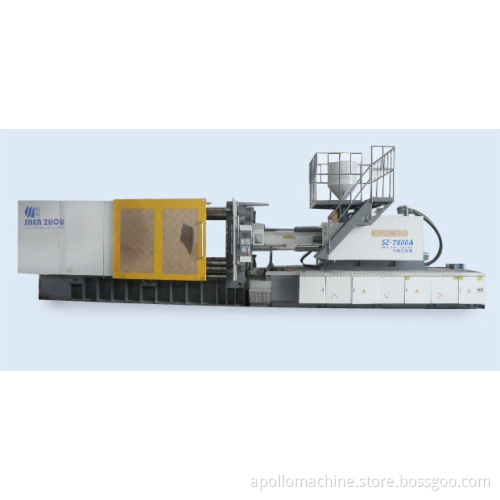

Plastic Bottle Injection Molding Machine (APOLLO-7500A)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

Shot weight: 2603G--3543G
Screw diameter: 90mm--105mm
Clamping force: 750ton
Space between tie bars: 950x950mm

Item	Unit	APOLLO-7500A
Injection Uint
Screw diameter	mm	70 75 80
Screw L/D Ratio	L/D	22.6 21 19.7
Theoretical Shot Volume	CM 3	1346 1545 1758
Shot Weight(ps)	g	1225 1406 1600
Injection Pressure	mpa	201 175 154
Theoretical Injection Rates(ps)	g/s	370 423 484
Plasticising Capacity	g/s	60.4 71.4 83.7
Screw Torque	N.m	3490
Max.Screw Rotate Speed	r/min	150
Injection Stroke	mm	350
Clamping Unit
Max.Clamping Force	KN	4800
Max.Opening Stroke	mm	770
Space Between Tie Bars(VxH)	mm	760×760
Mould height(min-max)	mm	280-790
Max.Daylight	mm	1560
Ejector Force	KN	113.4
Ejector Stroke	mm	195
Ejector Quantity		13
Other
Pump Motor Power	KW	45
Pump Pressur	Mpa	16
Heating Power	KW	28
Heating Zone		5
Size	m	7.5×2×2.4
Net Weight	t	19.8
Oil Tank Capacity	L	850
International Designation		4800-2710
