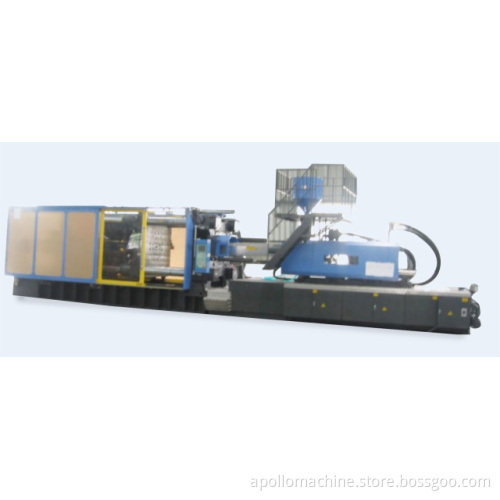

Pet Preform Injection Molding Machine (SZ-10000A)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

Shot weight: 3715g--6280g
Screw diameter: 100--130mm
Clamping force: 1000ton
Space between tie bars: 1110x1110mm

Item	Unit	APOLLO-10000A
Injection Uint
Screw diameter	mm	100 110 120 130
Screw L/D Ratio	L/D	24.2 22 20.2 18.6
Theoretical Shot Volume	CM 3	4083 4941 5880 6901
Shot Weight(ps)	g	3715 4496 5350 6280
Injection Pressure	mpa	206 171 143 122
Theoretical Injection Rates(ps)	g/s	695 841 1001 1175
Plasticising Capacity	g/s	96 116 130 148
Screw Torque	N.m	8690
Max.Screw Rotate Speed	r/min	110
Injection Stroke	mm	520
Clamping Unit
Max.Clamping Force	KN	10000
Max.Opening Stroke	mm	1160
Space Between Tie Bars(VxH)	mm	1110×1110
Mould height(min-max)	mm	450-1200
Max.Daylight	mm	2360
Ejector Force	KN	245
Ejector Stroke	mm	350
Ejector Quantity		21
Other
Pump Motor Power	KW	90
Pump Pressur	Mpa	16
Heating Power	KW	68.45
Heating Zone		6
Size	m	12.38×2.8×3.5
Net Weight	t	60
Oil Tank Capacity	L	1700
International Designation		10000-8410
