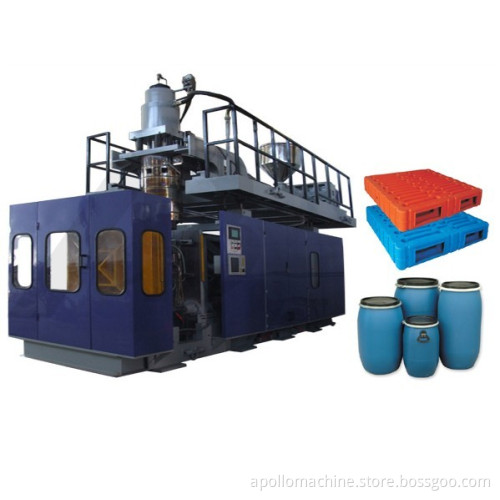

80L Rust Drum Blowing Machinery (ABLD100)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

This type of blow molding machine ABLD100 can produce bottle, kettle, can, etc. The machine is especially designed for producing with material PE, PVC, PP and so on. The productive capacity can reach 30-40PCS/hr.

Max. Product volume	100liters
Output capacity	30~40 pcs/h
Screw diameter	100mm
Screw L/D ratio	25 L/D
Screw drive power	45KW
Screw heating capacity	20KW
No.of heating zone	4 zones
Output of HDPE	160 KG/H
Oil pump drive power	37KW
Clamping force	440 KN
Max.size of mold	800X1000mm
Mold stroke	500-1200mm
Max.die diameter	430mm
Die heating power	9.5KW
Die heating segments	5zones
Blowing pressure	0.8mpa
Air volume	1.2M³/MIN
Cooling water pressure	0.3mpa
Water consumption	100 L/MIN
