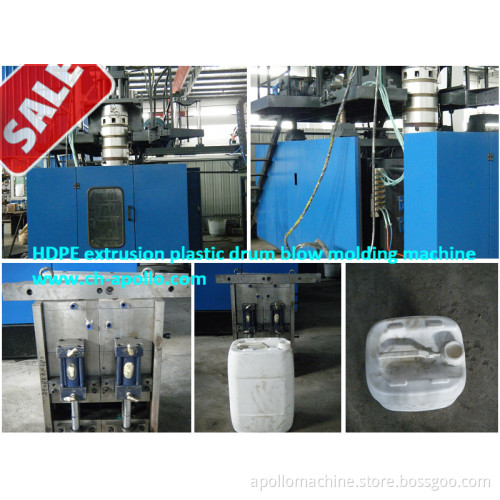

HDPE Plastic Drum Blow Molding Machine (ABLB80)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

ABLB80 blow molding machine is suitable to produce 5 gallon PC bottles and containers in all shapes. We also have CE and ISO9001 certificate for you and offer engineer to your country to help you set up the machine. High quality assurance will be provided for you.
Equipped with special designed material storage
Silencer and oil system are used to reduce vibration and lubricate
The machine can be operated in step-by-step mode and also semi-auto mode.
Wide-mouth and irregular shape also can be produced in this machine.
For more information. About this machine, don't hesitate to contact us.

Max. product volume	5 gallon
Output capacity	90 pcs/h
Screw diameter	80mm
Screw L/D ratio	25 L/D
Screw drive power	30 KW
Screw heating capacity	16KW
No. of heating zone	4 zones
Output of HDPE	100 KG/H
Oil pump drive power	22 KW
Clamping force	210 KN
Max. size of mold	350-780mm
Mold stroke	550x650mm
Max. die diameter	280mm
Die heating power	5.3 KW
Die heating segements	4 zones
Blowing pressure	0.8 mpa
Air volume	0.8 M2/MIN
