Product Description

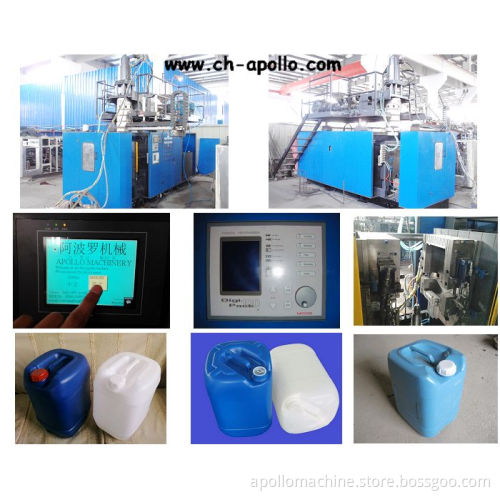

30L~60L Bottle/Jerry can/Tank/Drum blow molding machine
ABLD90 full automatic blow molding machine is suitable for various kinds of plastic bottles in all shapes from 13L to 50L. It is widely used to produce tool boxes and big volume bucket, plastic board and related containers. Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.

Easy to operate, saved labor cost, saved enery, high efficiency to promote your productivity
You can regain the machine cost with 1-2 years.
The machine looks neat and nice
Perfect function with economic investment.

Max. Product volume	50 liters
Dry cycle	450pc/h
Screw diameter	90mm
Screw L/D ratio	25 L/D
Screw drive power	37 KW
Screw heating capacity	10~15 KW
No.of heating zone	4 zones
Output of HDPE	130 KG/H
Oil pump drive power	15 KW (after enery saving )
Clamping force	260 KN
Max.size of mold	450-1000mm
Mold stroke	700X950mm
Max.die diameter	340mm
Die heating power	7.6 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	1.0 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
