Grease Bottle Blow Molding Machine (1~2L) (ABLB55II)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

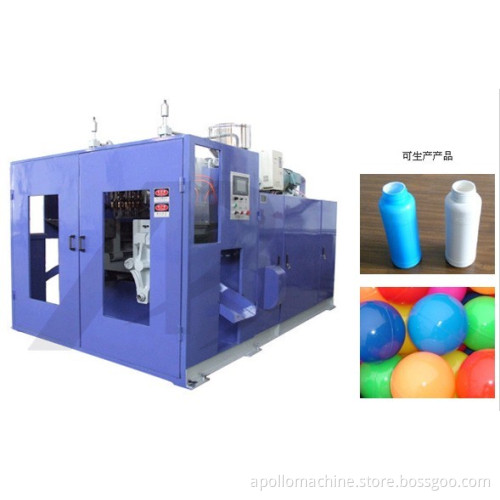

Plastic blow molding machine ABLB55II is mainly designed for making various kinds of plastic containers such as: Oil bottles, lubricant bottles, detergent bottles, cosmetic bottles, plastic balls so on. Double station and double die head design make the output higher and more efficient.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 1L.
(2)Double station double die design, stable and higher output capacity.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

Max. Product volume	1liters
Out put capacity	480~650pcs/h
Screw diameter	55mm
Screw L/D ratio	24L/D
Screw drive power	15KW
Screw heating capacity	5KW
No.of heating zone	3 zones
Output of HDPE	60KG/H
Oil pump drive power	7.5KW
Clamping force	45KN
Max.size of mold	148-508mm
Mold stroke	320X 360mm
Max.die diameter	140mm
Blowing pressure	0.6mpa
Air Volume	0.5M³/MIN
Cooling water pressure	0.3mpa
Water consumption	40L/MIN
Size of Machine	2.9x1.5x2.5m
Weight of machine	4.5 ton
