2L PE Bottle Blow Molding Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

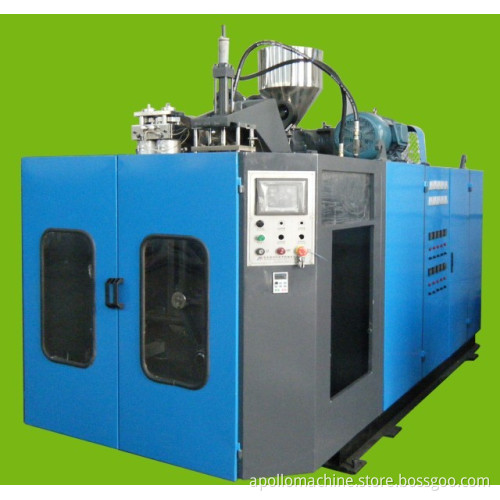

Automatic extrusion blow moulding machine
Model No.: ABLB55II(double station double die head)
This type of blow moulding machine ABLB55II can produce bottle, kettle, can, balls etc. The machine is especially designed for producing with material PE, PVC, PP so on. The productive capacity can reach 480~650PCS/hr.

Max. Product volume	1 liters
Out put capacity	480~700pcs/h
Screw diameter	55mm
Screw L/D ratio	24 L/D
Screw drive power	15 KW
Screw heating capacity	5 KW
No.of heating zone	3 zones
Output of HDPE	60 KG/H
Oil pump drive power	7.5 KW
Clamping force	45KN
Max.size of mold	148-508mm
Mold stroke	320 X 360mm
Max.die diameter	140mm
Blowing pressure	0.6 mpa
Air Volume	0.5 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	40 L/MIN
Size of Machine	2.9x1.5x2.5m
Weight of machine	4.5 ton
