Basic Info
Basic Info
Place of Origin: Zhangjiagang City, Jiangsu Province, China
Payment Type: L/C, T/T
Product Description
Product Description

Product Description

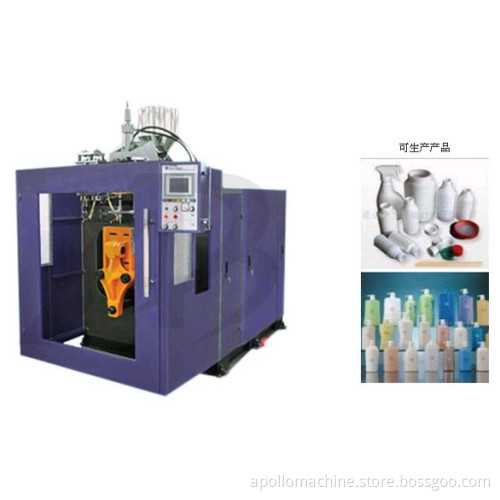

Plastic blow molding machine ABLB45II is mainly designed for making various kinds of plastic containers such as: Oil bottles, lubricant bottles, detergent bottles, cosmetic bottles, plastic balls so on. Double station and double die head design make the output higher and more efficient.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 2L.
(2)Double station single die design, stable and higher output capacity.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Max. Product volume 1liters
Out put capacity 480~650pcs/h
Screw diameter 45mm
Screw L/D ratio 24L/D
Screw drive power 12KW
Screw heating capacity 5KW
No.of heating zone 3 zones
Output of HDPE 50KG/H
Oil pump drive power 7.5KW
Clamping force 32KN
Max.size of mold 80-350mm
Mold stroke 250X 320mm
Max.die diameter 140mm
Blowing pressure 0.6mpa
Air Volume 0.5M³/MIN
Cooling water pressure 0.3mpa
Water consumption 40L/MIN
Size of Machine 2.9x1.5x2.5m
Weight of machine 4.5 ton
