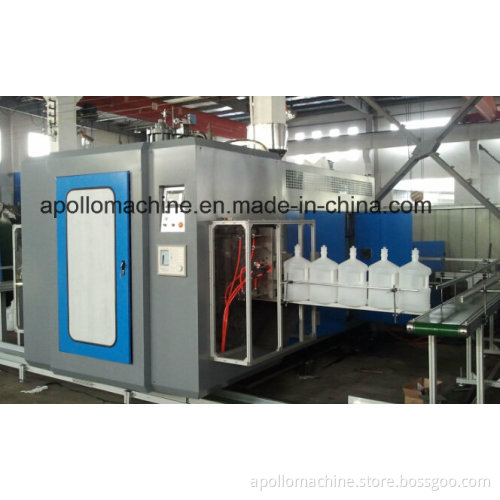

HDPE water gallons full automatic blow molding machine
4 Gallon Bottle Blow Molding Machine (ABLB90)
4 gallon bottle making machine
Key word: 4gallon blow molding machine
Water bottle blowing machine
ABLB90II 4 gallon bottle blow molding machine was specially designed for making plastic water gallons, lubricant oil bottles, tool boxes, plastic drums, and other plastic containers not over 20L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Double station single die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Full automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
(8)Special screw cut device available

Max. Product volume	20 liters
Out put capacity	2160~2400pc/day
Screw diameter	90mm
Screw L/D ratio	24 L/D
Screw drive power	45KW
Screw heating capacity	8 KW
No.of heating zone	4 zones
Output of HDPE	128KG/H
Oil pump drive power	11 KW
Clamping force	108KN
Max.size of mold	240-660mm
Mold stroke	530 X 550mm
Max.die diameter	180mm
Blowing pressure	0.6 mpa
Air Volume	0.9 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN
Size of Machine	4.2x3x3.1m
Weight of machine	11ton

HDPE or PP 4 Gallon Water Bottle Blow Molding Machine 20L gallons making machine
Technical Parameters: ( ABLB90 )

Basic parameters	Suitable material	PE.PP,PVC,PS,PETG,so on
	Max volume	20L
	Output capacity	140~160 pcs/h
	Size	4.4×2.2×2.7(M)
	Weight	5.3T
system	Specification	Parameters	Note
Plasticizion system	Summarize	High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
	Reducer	Hard finishing,High intension,Low noise reducer
	Screw	∮90mm,L/D ratio 25, 38CrMoALA	Cooling system available
	Plasticization	130Kg/H	HDPE
	Heating Zone	4 Aluminum Heater	Automatic heating
	Heating power	18KW/H
	Extrusion Motor	Three phase asynchronous motor 30kw (380V,50HZ)
	Cooling Fan	4zone	Automatic cooling
Extrusion system	Summarize	High-grade alloy steel, center feeding
	Die head number	1
	Center distance of die heads	/
	Max die mouth	∮340mm
	Heating zone	4 Stainless steel heating cycle
	Heating power	5~7KW
Clamping system	Summarize	High intension, rigidity, center mold locking, stable mould opening and clamping system
	Clamping force	260KN
	Template distance	450~1000mm
	Max mould size	700X950mm
	Mould material	High grade 50# steel
Electric system	Summarize	PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)	Japanese Mitsubishi PLC system
	Operate interface	Touch screen, automatic self-diagnose alarm system
	Temperature control	Automatic temperature control module
	Movement control	Japanese Mitsubishi, Chinese/English Version
	Electric protection	Ampere overload, electric short circuit self-protection function
Hydraulic system	Summarize	Multiple function hydraulic integrated block Proportional control, high efficient
	Oil pump motor	Three phase asynchronous motor 15kw (380V/220V,50/60HZ)
	Oil pump	Imported double pump
	Valves	Imported oil pump valves and connections
	Oil pipes	Double layer overpressure resistant
	System pressure	60Kg/cm²
	Cooling system	Separate water cooling cycle, oil cooler cooling system
Pneumatic system	Summarize	Taiwan AIRTAC pneumatic system
	Air pressure	0.6Mpa
	Air displacement	0.8M3/min
	Electromagnetic valve	Taiwan AIRTAC
Cooling system	Summarize	Separate cooling system of mould, barrel and oil system
	Cooling medium	Water
	Water flow	90L/min
	Water pressure	0.3-0.6MPa

The main components of the machine. ( ABLB90 )

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	Japanese MITSUBISHI
Auxiliary Relay	OMRON
contactor	SCHNEIDER RELAY
Electric motor	SIEMENS
Power Source	TAIWAN MEANWELL
Transducer	DELTA from TAIWAN
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	AIRTAC
