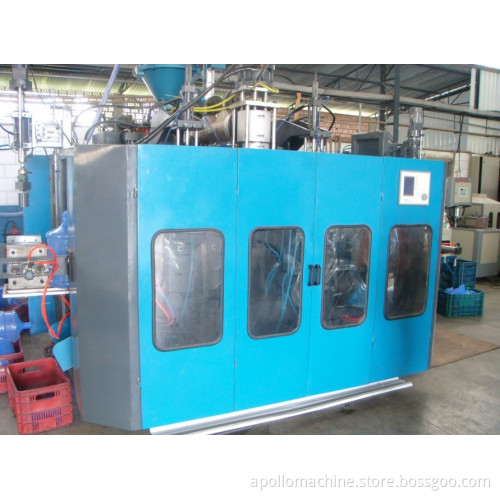

20L Water HDPE/PP Bottle Blow Molding Machine (ABLB90II)

ABLB90II 4 gallon bottle blow molding machine was specially designed for making plastic water gallons, lubricant oil bottles, tool boxes, plastic drums, and other plastic containers not over 20L.

The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Double station two die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Full automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
(8)Special screw cut device

Technical Parameters: ( ABLB90 )

Basic parametersSuitable materialPE. PP, PVC, PS, PETG, so on
Max volume20L
Output capacity2200~2400pcs/day
Size4.4× 2.2× 2.7(M)
Weight5.3T
SystemSpecificationParametersNote
Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
ReducerHard finishing, High intension, Low noise reducer
Screw90mm, L/D ratio 25, 38CrMoALA Cooling system available
Plasticization130Kg/HHDPE
Heating Zone4 Aluminum HeaterAutomatic heating
Heating power18KW/H
Extrusion MotorThree phase asynchronous motor 30kw
(380V, 50HZ)
Cooling Fan4zone Automatic cooling
Extrusion systemSummarizeHigh-grade alloy steel, center feeding
Die head number1
Center distance of die heads/
Max die mouth340mm
Heating zone4 Stainless steel heating cycle
Heating power5~7KW
Clamping systemSummarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force260KN
Template distance450~1000mm
Max mould size700X950mm
Mould materialHigh grade 50# steel
Electric systemSummarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting, auxiliary function available)
Japanese Mitsubishi PLC
System
Operate interfaceTouch screen, automatic self-diagnose alarm system
Temperature controlAutomatic temperature control module
Movement controlJapanese Mitsubishi, Chinese/English
Version
Electric protectionAmpere overload, electric short circuit self-protection function
Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient
Oil pump motorThree phase asynchronous motor 15kw (380V/220V, 50/60HZ)
Oil pumpImported double pump
ValvesImported oil pump valves and connections
Oil pipesDouble layer overpressure resistant
System pressure60Kg/cm²
Cooling systemSeparate water cooling cycle, oil cooler cooling system
Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system
Air pressure0.6Mpa
Air displacement0.8M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system
Cooling mediumWater
Water flow90L/min
Water pressure0.3-0.6MPa
The main components of the machine. ( ABLB90 )
Electronic parts
NameTrader
Micro computer control systemJapanese MITSUBISHI
Temperature ControllerJapanese MITSUBISHI
Auxiliary RelayOMRON
ContactorSCHNEIDER RELAY
Electric motorSIEMENS
Power SourceTAIWAN MEANWELL
TransducerDELTA from TAIWAN
Hydraulic parts
NameTrader
Oil pumpTAIWAN HIGH-TECH
ValveJAPAN YUKEN
Oil pump and connectionJAPAN YUKEN
Sealed partHALLITE
Air control system
NameTrader
CylinderAIRTAC
Air ValveAIRTAC
